Ferrite High Current SMD Shielded Power Inductor for DC-DC Converters

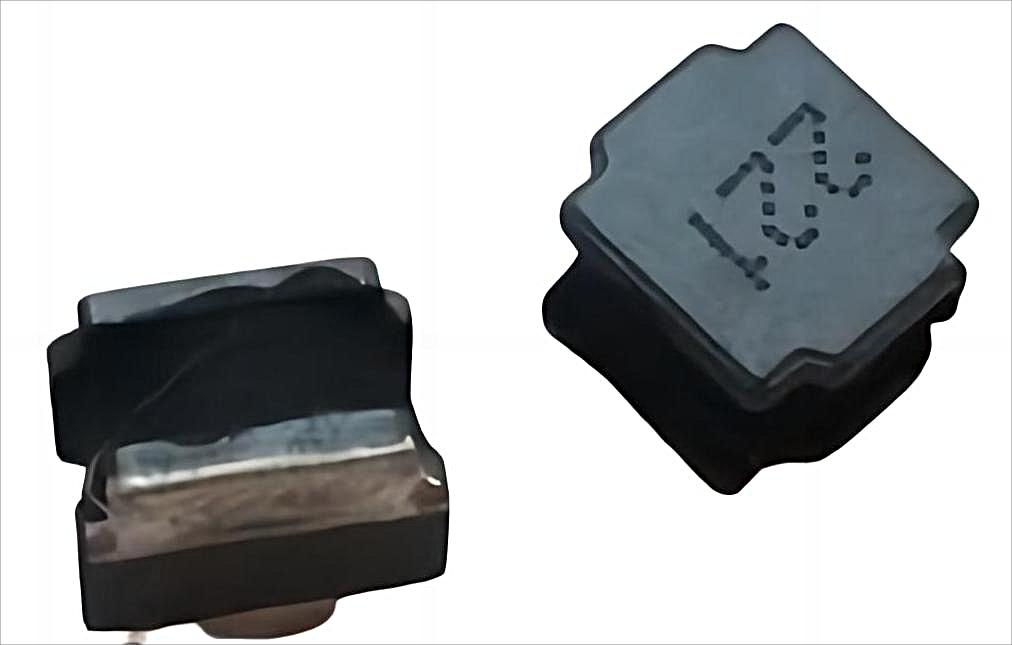

The NR5020 Ferrite High Current SMD Shielded Power Inductor is a specific type of SMD inductor that is designed for use in DC-DC converters. It is capable of handling high currents and is shielded to minimize electromagnetic interference. This type of inductor is commonly used in various electronic applications where DC-DC conversion is required.
FEATURES
• Shielded construction with magnetic can reduce buzz noise significantly
• Metallization on ferrite core produces excellent shock resistance and durability
• Designed with a closed magnetic circuit can cut down leakage
• Built with flux and Electromagnetic Interference(EMI)
• Use less Printed Circuit Board (PCB) and save more power
Package (CARRIER TAPE DIMENSIONS (mm))
APPLICATION
.Mobile devices with added features such as TV, camera and LED Lighting
• Flat-screen TVs, blue-ray disc recorders, set-top boxes
• Laptops, desktop computers, servers, graphic cards
• Video game consoles and GPSs,
• Automotive systems, Base stations for telecommunication
| Series | Dimension (mm) | |||||||||
| A | B | C | D | E | F | L | H | G | ||
| NR3010 | 3.0±0.2 | 3.0±0.2 | 1.2 | 2.5 | 0.9 | 1.2 | 3.5 | 2.8 | 0.9 | |
| NR3012 | 3.0±0.2 | 3.0±0.2 | 1.3 | 2.8 | 0.9 | 1.2 | 3.5 | 3.0 | 0.9 | |
| NR3015 | 3.0±0.2 | 3.0±0.2 | 1.5 | 2.6 | 0.9 | 1.2 | 3.5 | 2.9 | 0.9 | |
| NR4010 | 4.0±0.2 | 4.0±0.2 | 1.15 | 3.5 | 1.3 | 1.4 | 4.5 | 3.8 | 1.1 | |
| NR4012 | 4.0±0.2 | 4.0±0.2 | 1.35 | 3.5 | 1.25 | 1.5 | 4.5 | 3.8 | 1.2 | |
| NR4018 | 4.0±0.2 | 4.0±0.2 | 1.8 | 3.5 | 1.2 | 1.6 | 4.5 | 3.8 | 1.3 | |
| NR4020 | 4.0±0.2 | 4.0±0.2 | 2.1 | 3.5 | 1.2 | 1.6 | 4.5 | 3.8 | 1.3 | |
| NR4026 | 4.0±0.2 | 4.0±0.2 | 2.8 | 3.5 | 1.1 | 1.8 | 4.5 | 3.8 | 1.5 | |
| NR4030 | 4.0±0.2 | 4.0±0.2 | 3.0 | 3.5 | 1.35 | 1.3 | 4.5 | 3.8 | 1.0 | |
| NR5012 | 5.0±0.2 | 5.0±0.2 | 1.3 | 4.0 | 1.5 | 2.0 | 5.5 | 4.3 | 1.7 | |
| NR5020 | 5.0±0.2 | 5.0±0.2 | 2.0 | 4.0 | 1.35 | 2.3 | 5.5 | 4.3 | 2.0 | |
| NR5040 | 5.0±0.2 | 5.0±0.2 | 4.0 | 4.0 | 1.5 | 2.0 | 5.5 | 4.3 | 1.7 | |
| NR6012 | 6.0±0.2 | 6.0±0.2 | 1.3 | 5.0 | 1.65 | 2.7 | 6.5 | 5.3 | 2.4 | |
| NR6028 | 6.0±0.2 | 6.0±0.2 | 3.0 | 5.0 | 1.85 | 2.3 | 6.5 | 5.3 | 2.0 | |
| NR6045 | 6.0±0.2 | 6.0±0.2 | 4.5 | 5.0 | 1.65 | 2.7 | 6.5 | 5.3 | 2.4 | |
| NR8040 | 8.0±0.2 | 8.0±0.2 | 4.2 | 6.3 | 2.45 | 3.1 | 8.5 | 6.6 | 2.8 | |
Ferrite Core: Provides high magnetic permeability and low losses, making it ideal for high-frequency applications.
• Shielded Design: Reduces electromagnetic interference (EMI), ensuring stable performance in sensitive circuits.
• High Current Handling: Capable of managing significant current loads, which is crucial for power supply applications.
• SMD/SMT Mounting: Suitable for surface mount technology, allowing for compact and efficient PCB designs.
