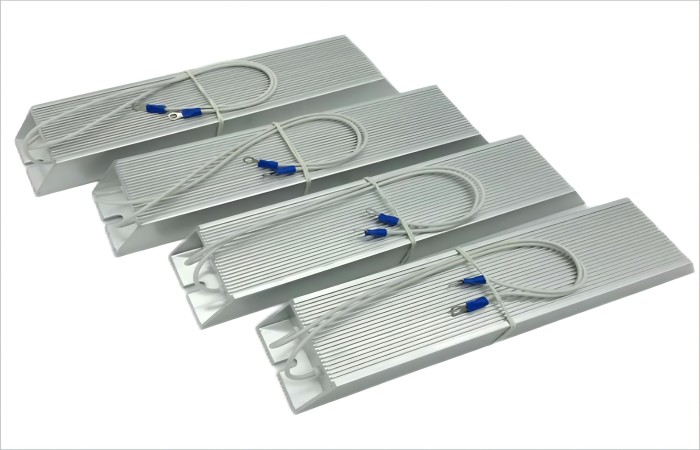

RXLG 60W~5kw Aluminum Heat Sink Trapezoidal Aluminum Shell Dynamic Braking Resistor

1. Metal aluminum shell packaging: good heat dissipation performance, can be used in harsh environments for a long time;
   2. Small size, large power load;
   3. High insulation, encapsulated with flame retardant materials;
   4. Adopt high-quality encapsulation materials, good shock resistance;
   5. Multiple wiring methods, easy to install;
   6. Widely used in frequency conversion equipment, elevators, stage audio, and high-end equipment industries;
   7. Accuracy range: ±1%, ±2%, ±5%, ±10%

2.

A Trapezoidal Aluminum Shell Braking Resistor is typically used in various industrial applications, particularly in electric motor drives, to dissipate the energy generated during the braking process. This energy dissipation helps in controlling the deceleration of the motor and ensures that it stops smoothly and safely.

Key Features and Benefits

1. Trapezoidal Shape:

• Provides better heat dissipation due to the increased surface area.

• Allows for more efficient cooling, thereby enhancing the performance and longevity of the resistor.

2. Aluminum Shell:

• Offers high thermal conductivity, which helps in rapidly dissipating heat.

• Lightweight and corrosion-resistant, making it suitable for harsh industrial environments.

• Provides robust mechanical protection for the internal components.

3. Braking Resistor:

• Designed to handle high power loads and dissipate large amounts of energy.

• Ensures smooth and controlled deceleration of electric motors.

• Protects the drive system from overvoltage conditions by absorbing the excess energy.

Applications

1. Elevators: Ensures smooth stopping and prevents jerky movements.

2. Cranes and Hoists: Provides safe deceleration, preventing load drops or swings.

3. Electric Vehicles: Manages regenerative braking energy to improve battery life and performance.

4. Industrial Machinery: Helps in maintaining precise control during stopping operations.

Specifications

• Resistance Range: Can vary depending on the application requirements.

• Power Rating: Typically ranges from a few hundred watts to several kilowatts.

• Tolerance: Usually within ±5% or ±10% of the nominal resistance value.

• Temperature Coefficient: Ensures stable performance across varying temperatures.

Installation and Maintenance

• Mounting: Can be easily mounted on heat sinks or directly onto machinery, thanks to its aluminum shell and shape.

• Cooling: May require additional cooling methods (e.g., fans) for high-power applications to maintain optimal performance.

• Inspection: Regular inspection and cleaning of the shell to prevent dust and debris accumulation which can affect heat dissipation.

Safety Considerations

• Ensure proper ventilation around the resistor to avoid overheating.

• Verify the resistor's specifications match the application's requirements to prevent failure.

• Follow manufacturer guidelines for installation and maintenance to ensure longevity and reliable performance.

If you have specific questions or need further details about a particular model or application of a trapezoidal aluminum shell braking resistor, feel free to ask!

1. Metal aluminum shell packaging: good heat dissipation performance, can be used in harsh environments for a long time;
   2. Small size, large power load;
   3. High insulation, encapsulated with flame retardant materials;
   4. Adopt high-quality encapsulation materials, good shock resistance;
   5. Multiple wiring methods, easy to install;
   6. Widely used in frequency conversion equipment, elevators, stage audio, and high-end equipment industries;
   7. Accuracy range: ±1%, ±2%, ±5%, ±10%
