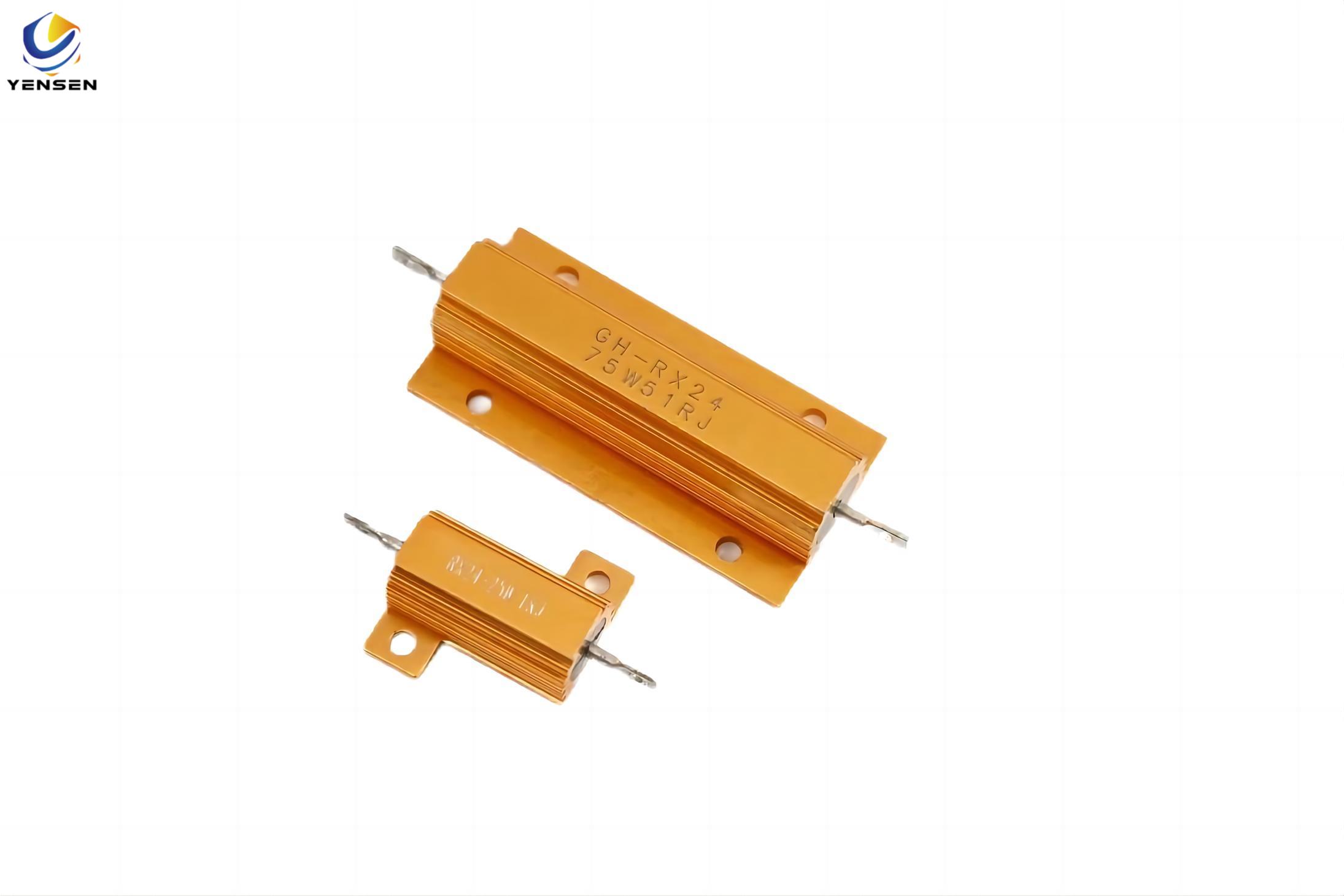

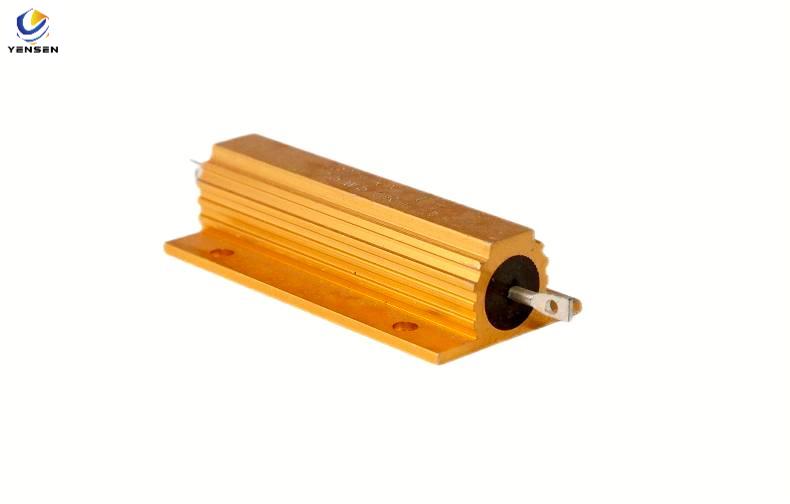

50W-500W Gold Heatsink Aluminum Housed Precision Aluminum Chassis Resistors

  • Rated power: 5W - 500 watts
  • Tolerance Options: From ±1% to ±10%
  • Maximum Voltage: 1.9kVdc
  • Dielectric Strength: 5kVac
  • Product description: Aluminium Housed Power Resistors, Small size with high power load, excellent heatsink capacity, ideal resistors for inverter, audio and elevator!
Send Enquiry
Share



50W-500W  Heatsink Aluminum Housed  Precision Aluminum Chassis Resistors

1.Encapsulated in a metal aluminum shell, it has good heat dissipation performance, is suitable for heat sink installation, and can be used in harsh environments for a long time.
2. Small size and large power load.
3. High insulation, integrated packaging using flame-retardant inorganic materials, and good vibration resistance.
4. Multiple wiring methods for easy installation.
5. Widely used in inverters, elevators, stage audio and high-end equipment industries.
6. Accuracy range: ±1%, ±2%, ±5%, ±10%

Model  Rated Power
 (W)
size (mm) Connection terminalD
S1 S2 L L1 W H
RX24  7.5W 11.3 12.5 15.2 42.5 16.4 8.2 02
02

02
02

02
M4

M4

M4
M4

 12W 14.3 15.9 19 49 20.3 9.9
 25W 18.3 20 27 47 27.4 13.5
 35W 25 21.5 34 64 29 15
 50W 39 21.5 50 80 29 15
 75W 46.5 37 70 100 48 27
 100W 66 37 98 128 48 27
 150W 105 37 135 165 48 27
 200W 130 37 165 195 48 27

Gold aluminum braking resistors are specialized components used in various electronic circuits and devices. They are designed to handle high power and are often used for dynamic braking in electric motors and generators. These resistors are known for their excellent heat dissipation capabilities and their ability to maintain stable and reliable electrical connections, even in demanding applications.

The gold aluminum coating on these resistors combines the excellent conductivity of gold with the durability and heat resistance of aluminum. This results in a component that not only excels in electrical stability but also offers superior resistance against corrosion. They come in a variety of resistance values and power ratings to cater to different requirements and can be integrated seamlessly into electronic systems due to their compact design and easy installation.

These resistors have a high-quality gold aluminum coating on their shells, which provides excellent conductivity and resistance to corrosion. The gold coating ensures stable and reliable electrical connections, making them suitable for use in demanding electronic applications.
● Gold aluminum shell resistors are designed to have precise resistance values, with tolerance levels ranging from 1% to 5%. This ensures accurate and consistent performance in different circuit configurations.
● RH resistors are aluminum encased to maintain high stability during operation and to permit secure mounting to chassis surfaces. The metal housing also provides heat sinkable capabilities, allowing the units to exceed the power ratings.






1.Encapsulated in a metal aluminum shell, it has good heat dissipation performance, is suitable for heat sink installation, and can be used in harsh environments for a long time.
2. Small size and large power load.
3. High insulation, integrated packaging using flame-retardant inorganic materials, and good vibration resistance.
4. Multiple wiring methods for easy installation.
5. Widely used in inverters, elevators, stage audio and high-end equipment industries.
6. Accuracy range: ±1%, ±2%, ±5%, ±10%
