Open Air Metal Alloy Current Sense Resistors

Current sense resistors

shunt resistors

Current sense resistors are designed for sampling current with a very low resistance value from 0.005Ω to 0.1Ω and a very low inductive, offer a high current, flameproof alternative to conventional axial devices and flat chips for current-sense circuits where PC board space is at a premium. The open air resistor's footprint is reduced by extending the height of the device above the board, thus keeping the resistor element's "hot spot" safely off the PC board and providing for increased air circulation under it, which in turn provides increased heat dissipation and cooler operation.

Features

1. Low inductance. Solder ability  copper leads (60/40).

2. Radial leads, low resistance value 0.005Ω ~ 0.1Ω.

3. High stability open-air style. Precision alloys resistive element.

4. Standard tolerance ±1%, ±2%, ±5%

5. Open air design and all welded construction

Applications

1. Inverter and Switching Power Supplies.

2. CPU Drive Control, Power Tool Motor controls.

3. Residual Battery Power Detection, Current Sensing.

1、Product Nominal: (Similar products: manganese copper wire, tinned copper, copper nickel, etc.)

Type

K

10

10

20

U

Material

wire

Pin pitch

resistance

shape

Current shunt

K:Constantan

10:1.0mm

10:10mm

20:20mR

U:U type M:M type M2:M2 type LX:Spiral UZ:Folding feet HX:HX

(Orders are available)  1：Wire diameter of"A"  2：Rated current  3：Pin pitch Span of“W”  4：Resistance  5:Other special requirements(board  height,foot length,etc.)

A : wire datameter

H : height

H1:pin length

E : Presser foot

W : Pin pitch

2、Product shape：

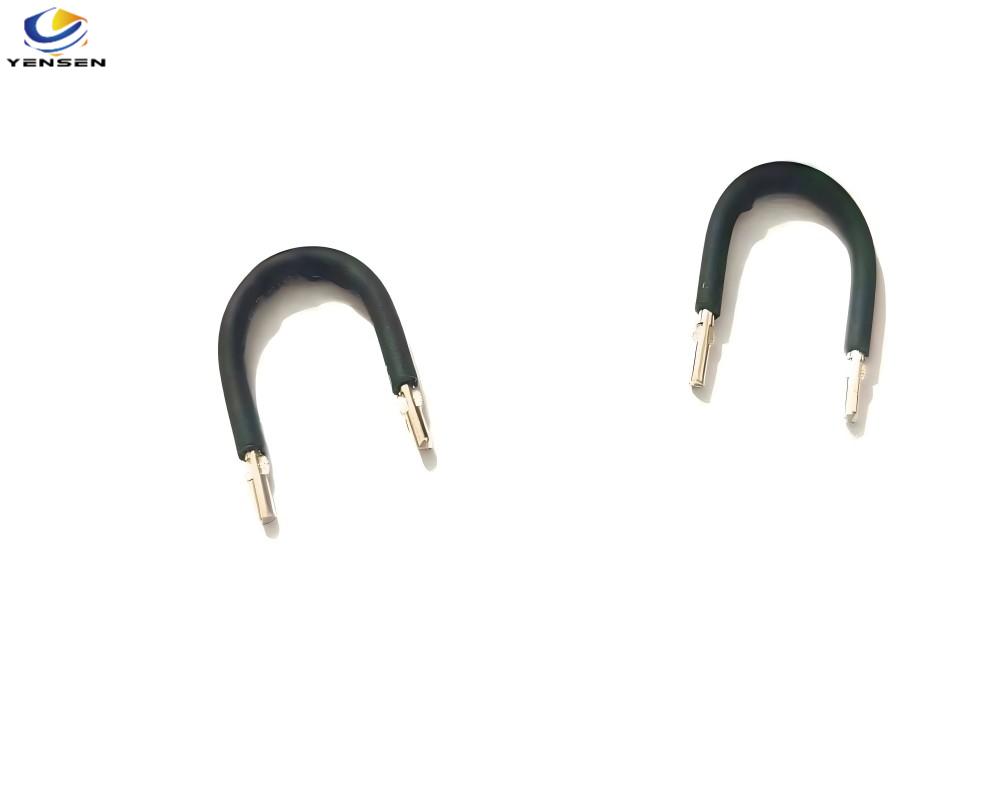

UType		Uz type								Hx Type
MType		M 2 Type								LxType
Test Conditions										Maximum resistance change percentage △R%
1000 hours at 25℃ Loading life 1000hrs at 25℃										1%
100 hrs in moisture										1%
Cycle 1000 times at -40℃-+150℃										1%

1. High Accuracy: They provide precise current measurements due to their low resistance values, which range from 0.005Ω to 0.1Ω.
2. Low Inductance: This feature ensures minimal interference with high-frequency signals, making them suitable for high-speed applications.
3. High Current Handling: They can handle high currents, making them ideal for power management and protection circuits.
4. Flameproof Design: Their construction ensures safety and reliability, even under high power conditions.

Additionally, the open-air design helps in better heat dissipation and cooler operation by allowing increased air circulation around the resistor element.

5.This type of series with Cost-effective items

Applications

1. Inverter and Switching Power Supplies.

2. CPU Drive Control, Power Tool Motor controls.

3. Residual Battery Power Detection, Current Sensing.

Automotive, Feedback System, Power Supply Shunt, Current Detective.
