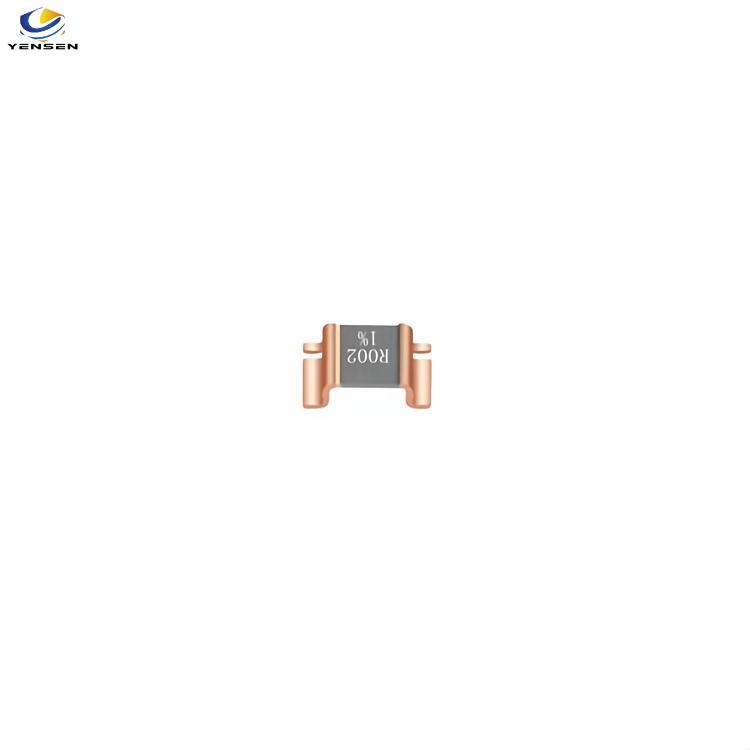

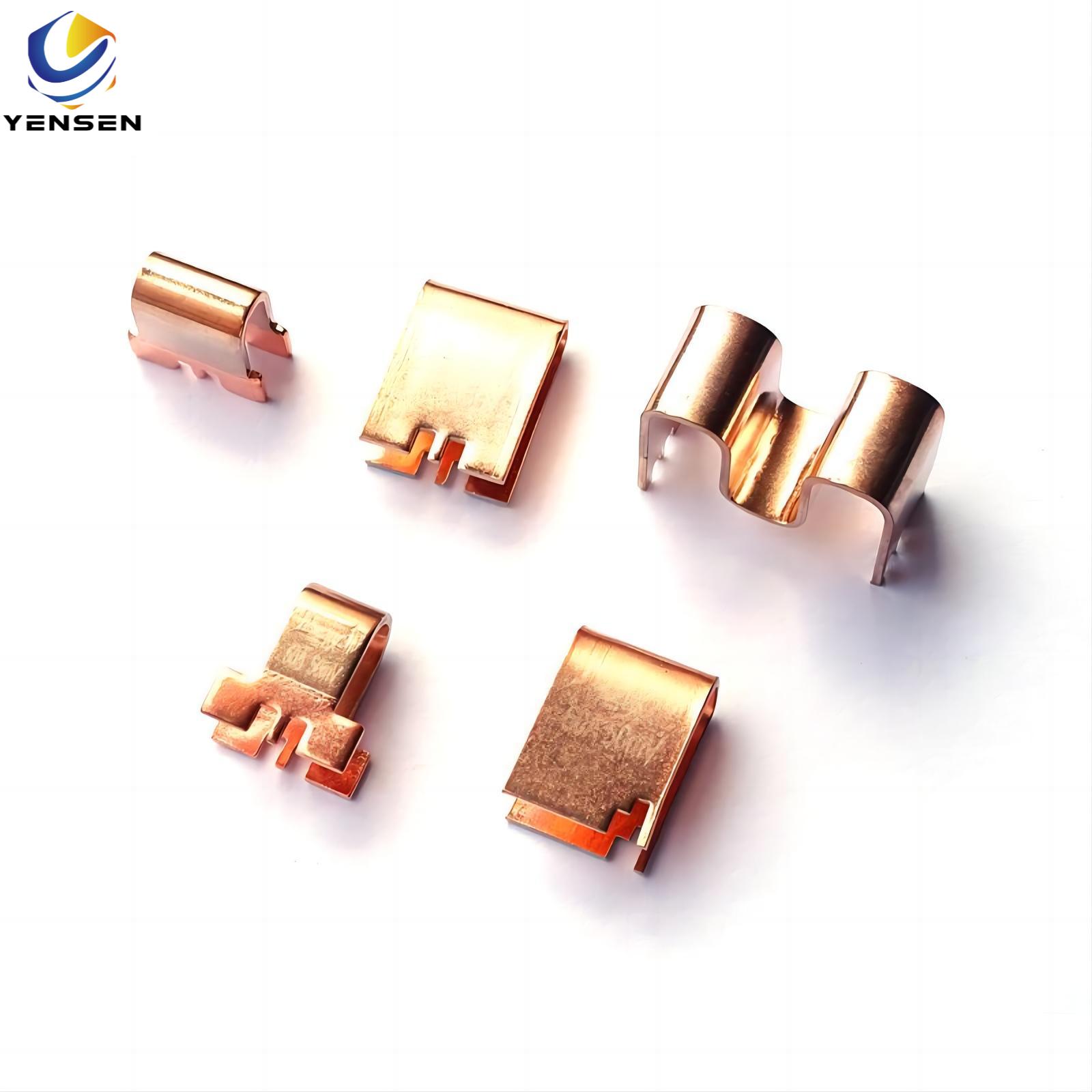

Electron beam welding Metal Alloy Chip Resistor SMT Shunt with 4 Terminal Type

Size:0805, 1206 Short Terminal Metal Foil

0805 to 2512 Metal Strip Chip

2512 to 5931 EB Welded Metal Strip

Rated power at 70 °C:0.5 W to 15 W

Resistance Range:0.2 to 100 mΩ

Resistance Tolerance:±1 %, ±5 %

Temperature Coefficient:±50, 100, ±200 ppm/°C

Send Enquiry

Product Description: Electron Beam Welding Metal Alloy Chip Resistor SMT Shunt with 4 Terminal Type

Introducing our Electron Beam Welding Metal Alloy Chip Resistor SMT Shunt with 4 Terminal Type—the ultimate solution for precise current sensing in high-performance applications. Designed with cutting-edge technology, this resistor is engineered to deliver exceptional accuracy and reliability, making it an essential component for automotive, industrial, and electronic systems.

Key Features:

4-Terminal Design:
The innovative four-terminal configuration allows for Kelvin connections, effectively eliminating the impact of lead resistance on measurement accuracy. This means you get precise voltage readings directly across the resistive element, enhancing the reliability of your current sensing applications.
Electron Beam Welding Technology:
Our advanced electron beam welding process ensures robust and durable connections between the resistive element and terminals. This method minimizes thermal EMF, providing high accuracy even in challenging environments.
Premium Metal Alloy Construction:
Crafted from high-quality metal alloys, this chip resistor offers low temperature coefficients (TCR) and excellent thermal stability, ensuring consistent performance across a wide range of temperatures.
Compact SMT Form Factor:
With a small footprint, this resistor is perfect for space-constrained designs, allowing easy integration into various circuit boards without compromising on performance.

Specifications:

Resistance Values: Available in a range of micro-ohms to milliohms to suit your specific application needs.
Power Ratings: Designed to handle significant power loads while maintaining stability and accuracy.
Size Options: Fits standard SMT dimensions, making it versatile for different applications.

Applications:

Our Electron Beam Welding Metal Alloy Chip Resistor is ideal for:

Automotive Systems: Perfect for battery management systems (BMS), motor drives, and other critical automotive applications requiring precise current measurements.
Industrial Equipment: Suitable for power modules, frequency converters, and energy metering systems where reliability is paramount.
Consumer Electronics: Enhances the performance of power supplies and chargers by ensuring accurate current monitoring.

Why Choose Our Resistor?

Investing in our Electron Beam Welding Metal Alloy Chip Resistor means choosing precision and durability. With its innovative design and manufacturing process, you can trust that this resistor will meet the demands of your most critical applications. Whether you're developing automotive technology or designing industrial machinery, our resistor delivers the performance you need to succeed. Elevate your projects with our state-of-the-art current sensing solutions—where accuracy meets reliability. Order now to experience the difference!
