150W Industrial-grade Dynamic Aluminum Brake Resistors
50W~5KW
Share
Describe
Products Advantage

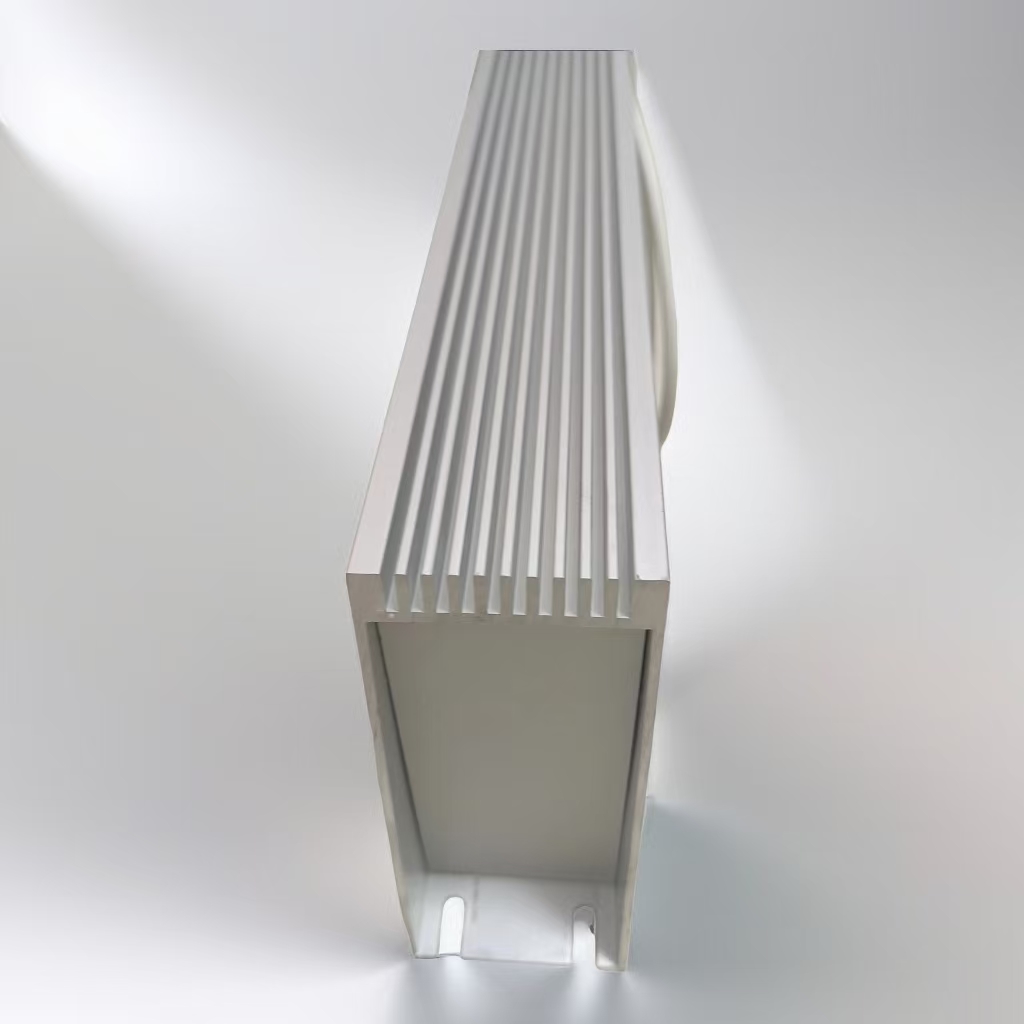

150W Industrial-grade Dynamic Aluminum Brake Resistors
1.Aluminum dynamic shell resistors, also known as aluminum housed resistors, are a type of power resistor encased in an aluminum shell. These resistors are commonly used in various industrial and commercial applications due to their durability, heat dissipation capabilities, and compact design.
2.
Dimension
| Rated power | Overall | Dimension(mm | Adaptive variable Power(KW) |
Matching Electricity old value(R |
||||||
| L | L1 | W | H | E | lead wire | Line length | ||||
| 50-60 | FigureA | 115 | 98 | 40 | 20 | 350 | 0.4-0.75 | 750 | ||
| 80 | 140 | 123 | 40 | 20 | 1 | 350 | ||||
| 100 | 165 | 148 | 40 | 20 | 1 | 350 | 1.5 | 390 | ||
| 120 | 190 | 173 | 40 | 20 | 1 | 350 | ||||
| 150 | 215 | 173 | 40 | 20 | 1 | 350 | ||||
| 200 | 165 | 147 | 60 | 30 | 1.5 | 350 | ||||
| 300 | 215 | 197 | 60 | 30 | 1.5 | 350 | 2.2-3.7 | 150 | ||
| 400 | 285 | 247 | 60 | 30 | 1.5 | 350 | ||||
| 500 | 335 | 317 | 60 | 30 | 1.5 | 350 | 5.5 | 100 | ||
| 800 | 400 | 382 | 60 | 30 | 2 | 350 | 7.5 | 75 | ||
| 800 | FigureB | 400 | 382 | 61 | 59 | 40.5 | 2.5 | 350 | ||
| 1000 | 400 | 384 | 50 | 107 | 30 | 2.5 | 350 | 11 | 40-50 | |
| 1200 | 450 | 434 | 50 | 107 | 30 | 2.5 | 350 | |||
| 1500 | 485 | 470 | 50 | 107 | 30 | 4 | 350 | 15 | 40 | |
| 2000 | 550 | 532 | 50 | 107 | 30 | 4 | 350 | 15-18.5 | 20-40 | |
| 2500 | 550 | 532 | 50 | 107 | 30 | 4 | 350 | |||
| 3000 | 550 | 532 | 50 | 107 | 30 | 4 | 350 | |||
| 4000 | 700 | 686 | 50 | 107 | 30 | 4 | 350 | 18.5-22 | 20-32 | |
