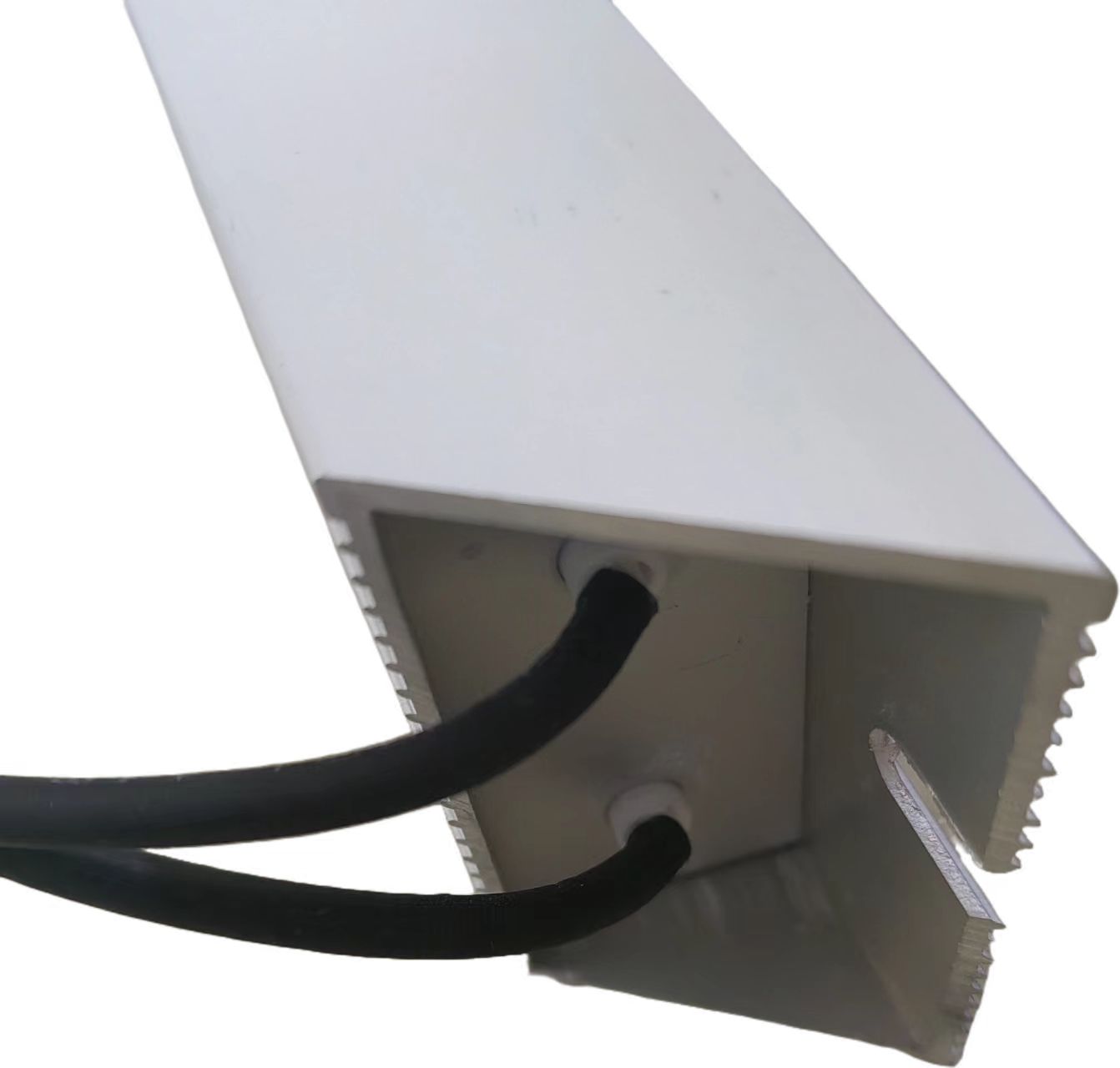

250W 200 ohm Aluminum Housed Cased Wirewound braking Resistor for Elevator
50W~6KW
250W 200 ohm Aluminum Housed Cased Wirewound braking Resistor for Elevator
1.Aluminum dynamic shell resistors, also known as aluminum housed resistors, are a type of power resistor encased in an aluminum shell. These resistors are commonly used in various industrial and commercial applications due to their durability, heat dissipation capabilities, and compact design.
Features of Aluminum Dynamic Shell Resistors
1. High Power Dissipation:
- Aluminum shell resistors can handle high power loads, making them suitable for applications requiring significant energy dissipation.
2. Durable Aluminum Housing:
- The aluminum casing provides excellent mechanical protection and enhances heat dissipation, ensuring long-term reliability.
3. Excellent Heat Dissipation:
- The aluminum housing allows for effective heat dissipation, which helps in maintaining stable resistance values under heavy load conditions.
4. Compact Design:
- These resistors offer a compact and space-saving design, making them ideal for applications with limited space.
5. Wide Resistance Range:
- Available in various resistance values, aluminum shell resistors can be tailored to specific application needs.
6. Low Inductance:
- Many aluminum shell resistors are designed to have low inductance, which is crucial for applications in high-frequency circuits.
7. High Stability and Reliability:
- Due to their robust construction, aluminum shell resistors offer high stability and reliability, even in harsh environments.
8. Customizable Options:
- They can be customized in terms of resistance value, tolerance, and power rating to meet specific application requirements.
Applications of Aluminum Dynamic Shell Resistors
1. Automotive Industry:
- Used in electric vehicles (EVs) and hybrid electric vehicles (HEVs) for braking systems, battery management, and power conversion.
2. Frequency Inverters (VFDs):
- Employed in frequency inverters for motor control applications, where they help in managing the energy flow and protecting the system.
3. Industrial Machinery:
- Applied in various industrial machinery for braking, speed control, and energy dissipation.
4. Power Supply Systems:
- Used in power supply units for load testing, voltage regulation, and transient suppression.
5. Renewable Energy Systems:
- Integrated into renewable energy systems such as wind turbines and solar inverters to manage power conversion and storage.
6. Railway and Traction Systems:
- Used in railway traction systems for dynamic braking and energy dissipation.
7. Test and Measurement Equipment:
- Employed in test benches, load banks, and other measurement equipment to simulate load conditions.
8. Aerospace and Defense:
- Applied in aerospace and defense applications where high reliability and performance are critical.
2.
Dimension
Rated power | Overall | Dimension(mm | Adaptive variable Power(KW) |
Matching Electricity old value(R |
||||||
L | L1 | W | H | E | lead wire | Line length | ||||
50-60 | FigureA | 115 | 98 | 40 | 20 | 350 | 0.4-0.75 | 750 | ||
80 | 140 | 123 | 40 | 20 | 1 | 350 | ||||
100 | 165 | 148 | 40 | 20 | 1 | 350 | 1.5 | 390 | ||
120 | 190 | 173 | 40 | 20 | 1 | 350 | ||||
150 | 215 | 173 | 40 | 20 | 1 | 350 | ||||
200 | 165 | 147 | 60 | 30 | 1.5 | 350 | ||||
300 | 215 | 197 | 60 | 30 | 1.5 | 350 | 2.2-3.7 | 150 | ||
400 | 285 | 247 | 60 | 30 | 1.5 | 350 | ||||
500 | 335 | 317 | 60 | 30 | 1.5 | 350 | 5.5 | 100 | ||
800 | 400 | 382 | 60 | 30 | 2 | 350 | 7.5 | 75 | ||
800 | FigureB | 400 | 382 | 61 | 59 | 40.5 | 2.5 | 350 | ||
1000 | 400 | 384 | 50 | 107 | 30 | 2.5 | 350 | 11 | 40-50 | |
1200 | 450 | 434 | 50 | 107 | 30 | 2.5 | 350 | |||
1500 | 485 | 470 | 50 | 107 | 30 | 4 | 350 | 15 | 40 | |
2000 | 550 | 532 | 50 | 107 | 30 | 4 | 350 | 15-18.5 | 20-40 | |
2500 | 550 | 532 | 50 | 107 | 30 | 4 | 350 | |||
3000 | 550 | 532 | 50 | 107 | 30 | 4 | 350 | |||
4000 | 700 | 686 | 50 | 107 | 30 | 4 | 350 | 18.5-22 | 20-32 |
