100-2500W Ceramic tube Power Coated Corrugated Wire-wound Resistor with Bracket
50W~10KW
100-2500W Ceramic tube Power Coated Corrugated Wire-wound Resistor with Bracket

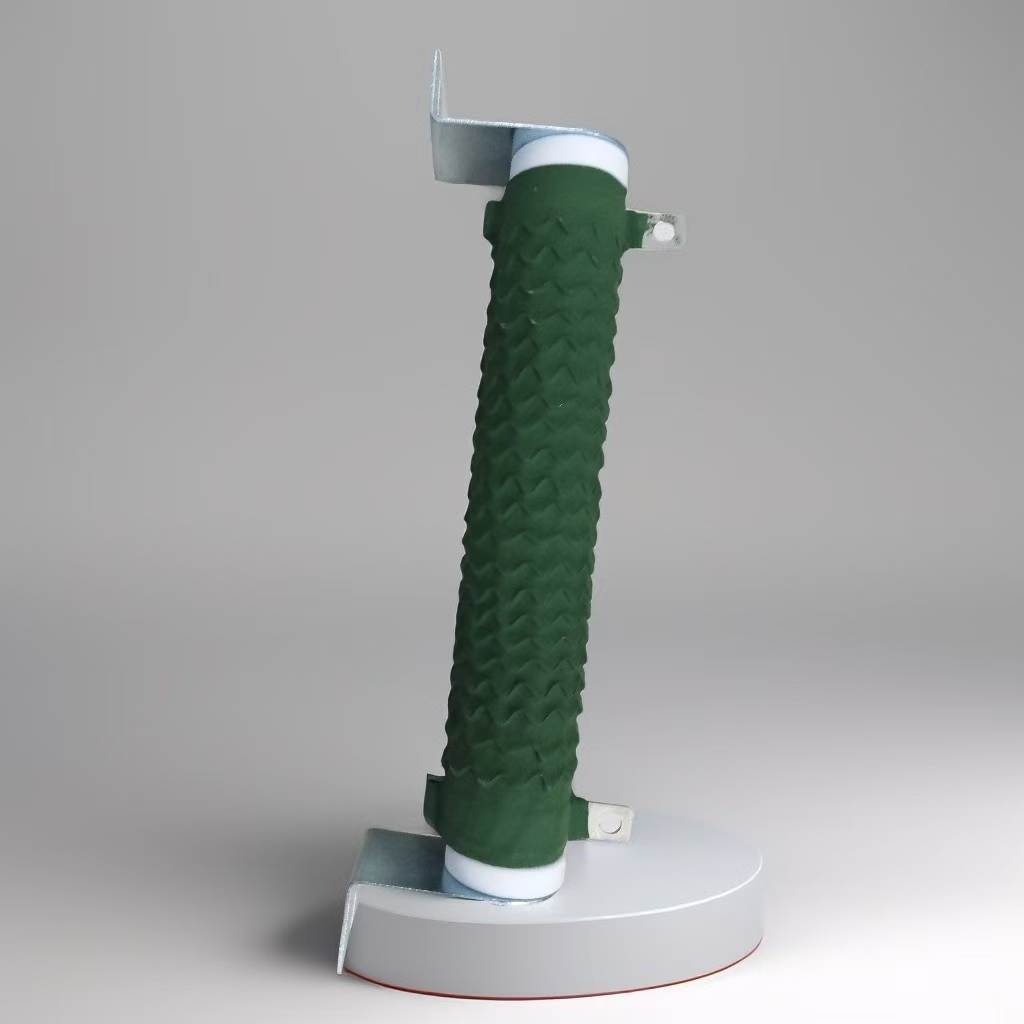

A Type Tubular Shape 5% Fixed High Power Coated Corrugated Wire-wound Resistor is a specialized resistor designed for high-power applications where precision, durability, and efficient heat dissipation are critical. Here’s a breakdown of its key features:
Key Features and Specifications:
1. Tubular Shape: The resistor has a cylindrical or tubular design, which offers a large surface area for efficient heat dissipation. This shape is ideal for high-power applications, allowing the resistor to handle significant energy loads without overheating.
2. 5% Tolerance: With a tolerance of 5%, this resistor offers reasonable accuracy for many industrial and high-power applications. It ensures that the resistance value stays within a 5% range of its specified value.
3. Fixed Resistor: The resistor has a fixed resistance value, meaning it does not change with varying voltage or current. This makes it reliable for applications where consistent performance is required.
4. High Power Handling: Designed to handle high power loads, this resistor is suitable for use in applications where large amounts of electrical energy need to be dissipated safely.
Applications:
- Industrial Equipment: Used in industrial machinery where high power dissipation is necessary.
- Power Supplies: Helps in regulating current and voltage in high-power circuits.
- Electric Motors: Used in motor control systems for braking and other power management functions.
- Testing and Calibration: Suitable for use in test equipment where stable and precise resistance is needed.
| Model | Rated Power(W) | size(mm) | resistance range | |||||
| L1(±2) | L2(±5) | L3(±3) | D(±2) | H(±3) | W | |||
| RXG-JF | 50 | 90 | / | / | 20 | 42 | 20 | 10-10KO |
| 80 | 140 | 170 | 195 | 28 | 68 | 28 | 10-10KQ | |
| 100 | 170 | 200 | 225 | 28 | 68 | 28 | 10-10KQ | |
| 150 | 215 | 245 | 270 | 28 | 68 | 28 | 10-10KQ | |
| 200 | 267 | 295 | 322 | 28 | 68 | 28 | 10-10KQ | |
| 300 | 267 | 290 | 317 | 40 | 102 | 40 | 10-10KO | |
| 400 | 330 | 353 | 380 | 40 | 102 | 40 | 10-10KO | |
| 500 | 330 | 348 | 364 | 50 | 118 | 50 | 10-10KO | |
| 600 | 330 | 348 | 364 | 50 | 118 | 50 | 10-10KO | |
| 800 | 300 | 325 | 350 | 60 | 118 | 60 | 10-10KO | |
| 1000 | 300 | 325 | 350 | 60 | 118 | 60 | 10-10KO | |
| 1500 | 420 | 445 | 470 | 60 | 118 | 60 | 10-10KQ | |
| 2000 | 600 | 625 | 650 | 60 | 118 | 60 | 10-10KQ | |
| 2500 | 600 | 630 | 662 | 70 | 158 | 70 | 10-10KQ | |
| 3000 | 430 | 460 | 490 | 100 | 158 | 100 | 10-10KQ | |
| 4000 | 430 | 460 | 490 | 100 | 158 | 100 | 10-10KQ | |
| 5000 | 500 | 530 | 560 | 100 | 158 | 100 | 10-10KQ | |
| 6000 | 600 | 630 | 660 | 100 | 158 | 100 | 10-10KQ | |
| 10000 | 600 | 655 | 720 | 150 | 255 | 155 | 10-10KQ | |
Industrial Equipment**: Used in industrial machinery where high power dissipation is necessary.
- Power Supplies: Helps in regulating current and voltage in high-power circuits.
- Electric Motors: Used in motor control systems for braking and other power management functions.
- Testing and Calibration: Suitable for use in test equipment where stable and precise resistance is needed.
