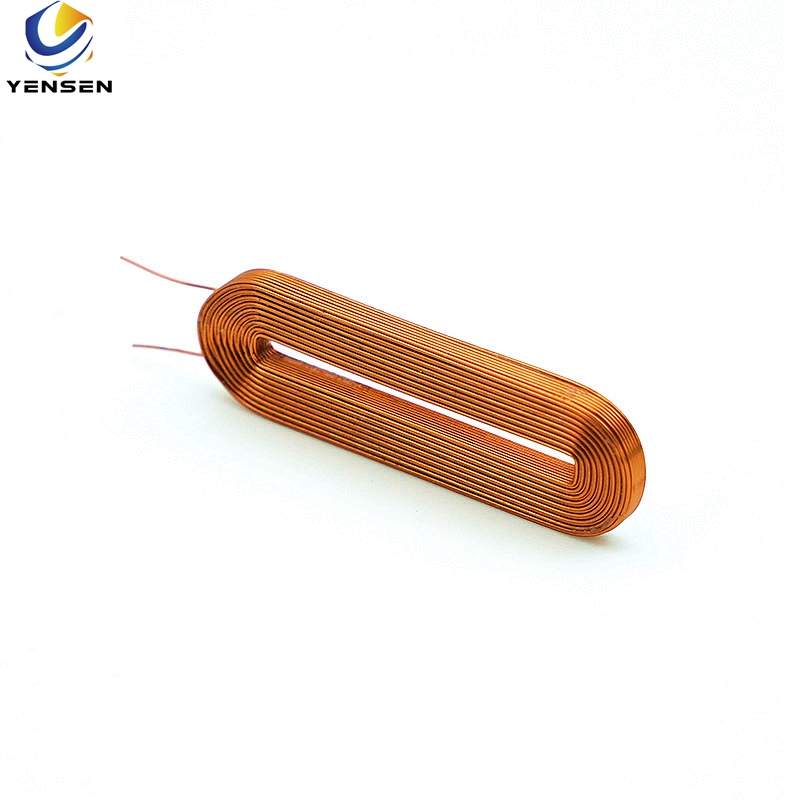

Customized electric high current induction motor flat wire coils and air core coils are specialized components used in various electrical applications. Below is an overview of their features, specifications, and applications.

Features

1. Flat Wire Design:
   - Flat wire coils are designed to maximize the surface area for better heat dissipation and higher current-carrying capacity.
   - The flat shape allows for tighter packing and reduced eddy current losses.

2. High Current Capacity:
   - Specifically designed to handle high currents, making them suitable for heavy-duty applications.
   - Can be made from various conductive materials, typically copper or aluminum, to optimize performance.

3. Air Core Construction:
   - Air core coils do not use a magnetic core, which reduces weight and allows for faster response times.
   - They minimize hysteresis and eddy current losses, making them more efficient in high-frequency applications.

4. Customization:
   - Coils can be tailored to specific dimensions, wire gauge, and winding configurations based on the application's requirements.
   - Custom insulation materials can be used to withstand extreme temperatures and environmental conditions.

5. Durability:
   - Engineered to withstand mechanical stress and thermal cycling, ensuring longevity in demanding environments.

Specifications

1. Wire Material: Copper, aluminum, or other conductive alloys.
2. Wire Gauge: Customizable, typically ranging from AWG 10 to AWG 40.
3. Coil Dimensions: Customizable based on application requirements (length, width, thickness).
4. Inductance Values: Tailored to meet specific inductance needs, often in the range of microhenries to millihenries.
5. Current Rating: Can vary widely, often designed to handle currents from several amps to hundreds of amps.
6. Voltage Rating: Depending on insulation and application, can range from low voltage (12V) to high voltage (up to several kV).
7. Temperature Rating**: Insulation materials can be rated for different operating temperatures, typically from -40°C to +180°C.

Applications

1. Electric Motors:
   - Used in high-performance induction motors for industrial applications, such as pumps, compressors, and conveyors.

2. Transformers:
   - Employed in transformer designs where high efficiency and low weight are critical.

3. Power Electronics:
   - Utilized in inverters and converters for renewable energy systems (solar, wind) and electric vehicles.

4. Induction Heating:
   - Used in induction heating applications for metal processing, cooking, and heating.

5. Aerospace and Automotive:
   - Applied in lightweight electric drive systems and other high-performance applications requiring compact and efficient components.

6. Telecommunications:
   - Used in RF applications where air core coils can reduce losses and improve signal integrity.

7. Medical Equipment:
   - Employed in MRI machines and other medical devices where high precision and reliability are essential.
