3 Winding Common Mode Choke Choke Coil Filter Mode DC Current Inductor

A 3-winding common mode choke is a vital component used in filtering applications, particularly for mitigating common mode noise in electrical systems. It's specifically designed to address both alternating current (AC) noise and direct current (DC) currents, making it effective for a variety of applications, including power supplies and communication lines.

Key Features and Functions

1. Winding Configuration:

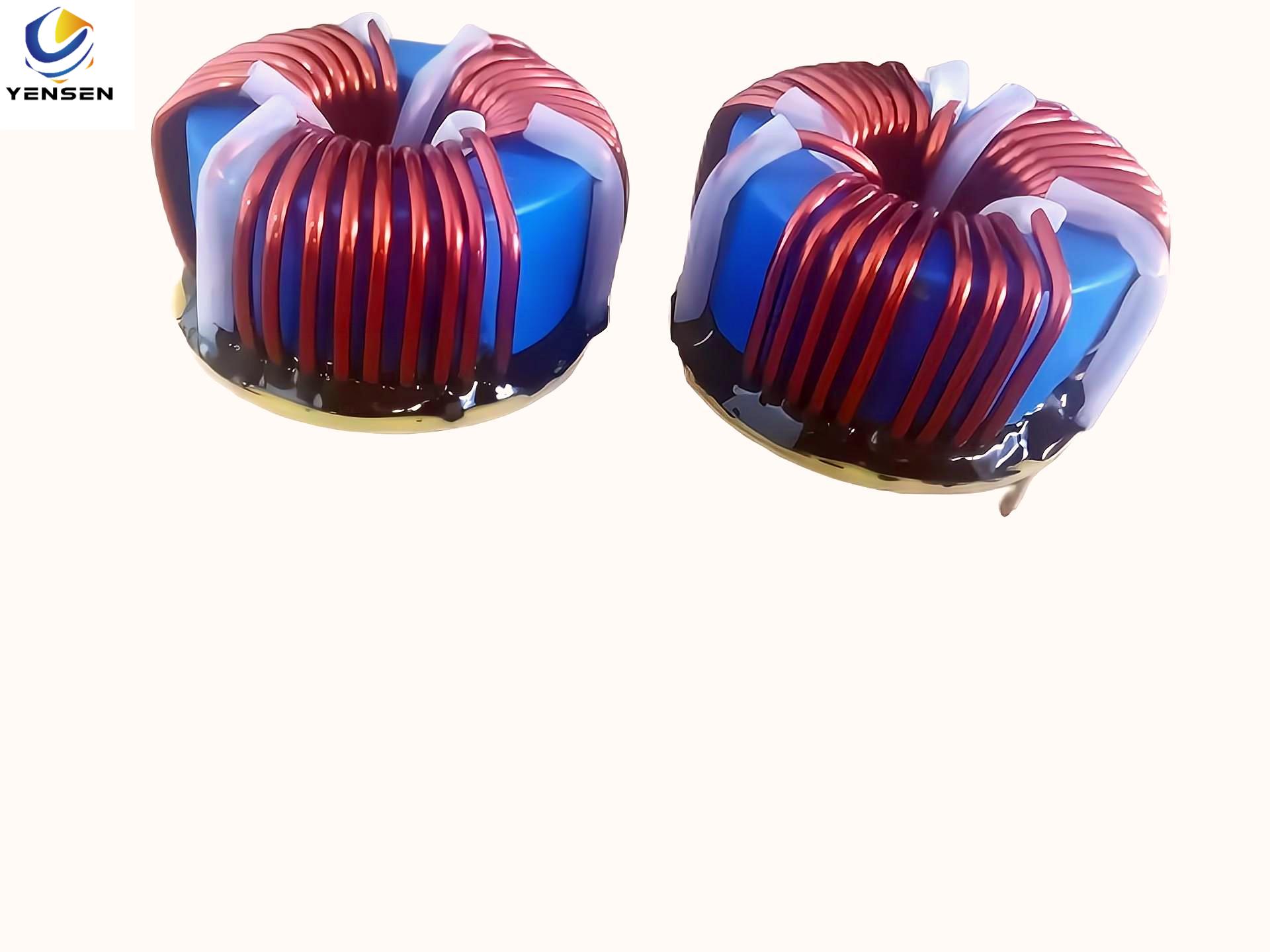

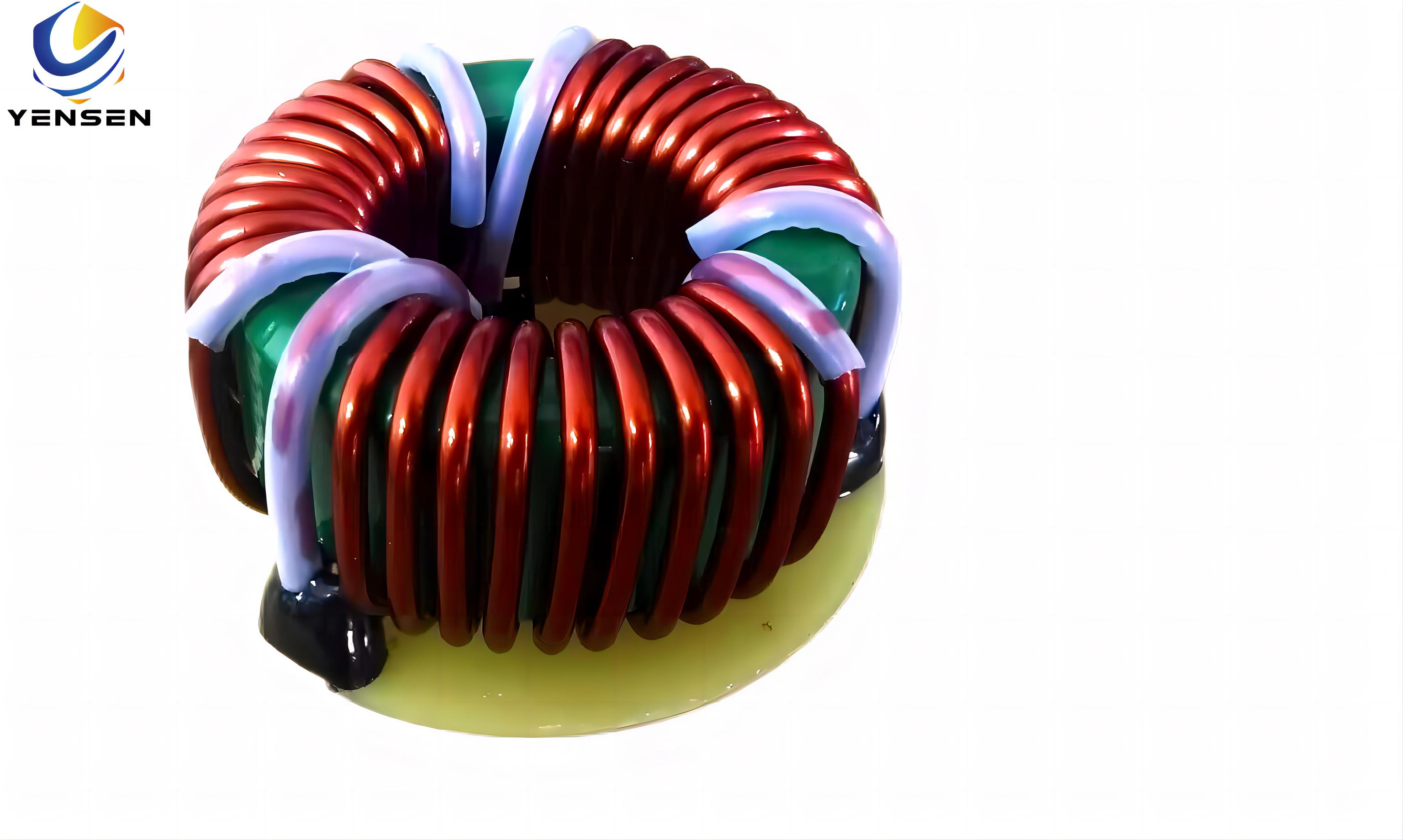

   - A typical 3-winding common mode choke consists of three separate windings around a toroidal or another type of magnetic core.
   - The windings may be arranged in such a way that two are connected to the differential signals (inputs), while the third winding may serve as a feedback or additional filtering winding.

2. Common Mode Noise Filtering:
   - Common mode chokes are designed to suppress common mode currents, which are noise currents that flow equally in both conductors of a pair. This is crucial for reducing electromagnetic interference (EMI) in systems.
   - They work on the principle that the common mode noise induces a current in the windings that creates opposing magnetic fields, effectively canceling out the noise.

3. DC Current Handling:
   - While common mode chokes are primarily used for AC signal filtering, the 3-winding configuration allows the choke to maintain functionality even in the presence of DC currents.
   - This makes them suitable for applications like switched-mode power supplies (SMPS) and data communication lines where DC and AC signals coexist.

4. Inductance Characteristics:
   - The design ensures high inductance values for common mode currents while maintaining a lower inductance for differential signals, allowing for minimal signal distortion.

 Applications

- Power Supplies: In switched-mode power supplies to filter out noise and ensure stable output.
- Data Lines: To suppress EMI in data transmission lines, ensuring better signal integrity.
- Audio Equipment: Commonly used in audio systems to reduce hum and other unwanted noise.
- Industrial Equipment: Utilized in machinery and equipment that requires robust noise filtering capabilities.

Considerations

When selecting a 3-winding common mode choke, consider the following parameters:

- Inductance Values: Ensure the choke provides adequate inductance for both common mode and differential mode filtering.
- Current Ratings: Verify that it can handle the DC current levels expected in the application without saturating.
- Core Material: The core material affects performance, especially at different frequencies. Ferrite cores are common due to their effectiveness in high-frequency applications.
- Size and Footprint: Ensure that the physical dimensions fit within the design requirements of your circuit.

In summary, a 3-winding common mode choke is an effective solution for applications requiring the filtration of both common mode noise and the handling of DC currents, making it crucial in modern electronic designs.
