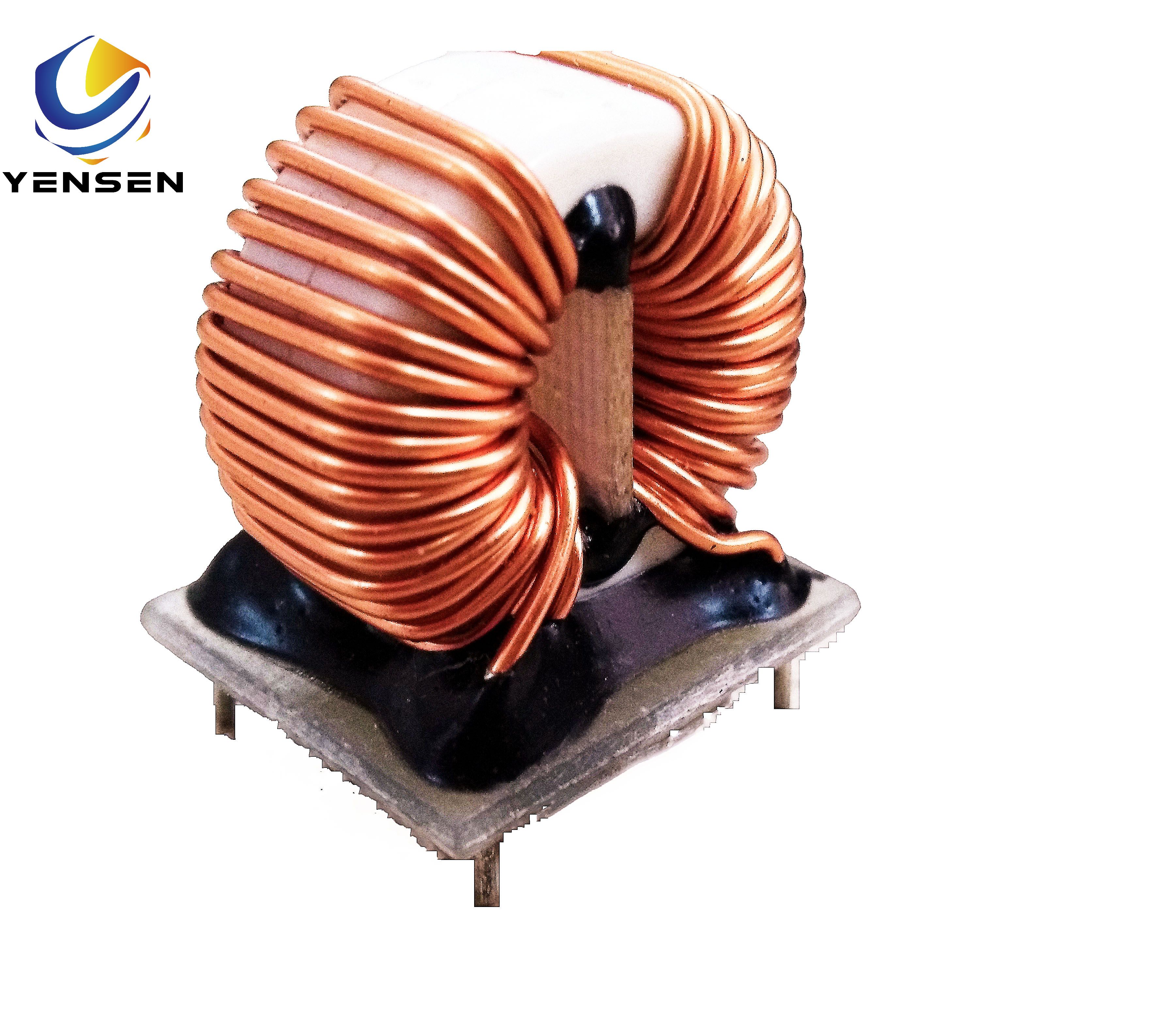

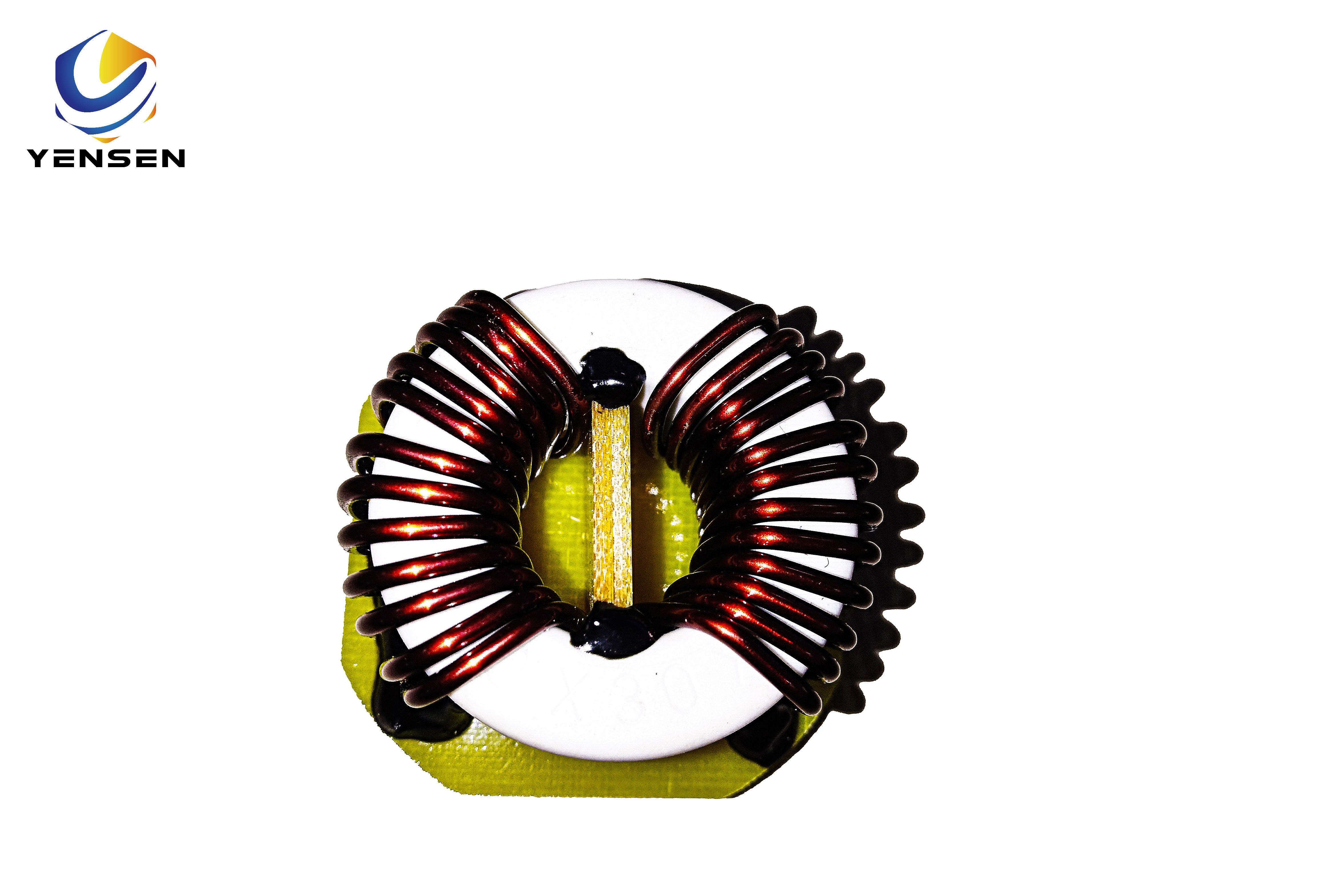

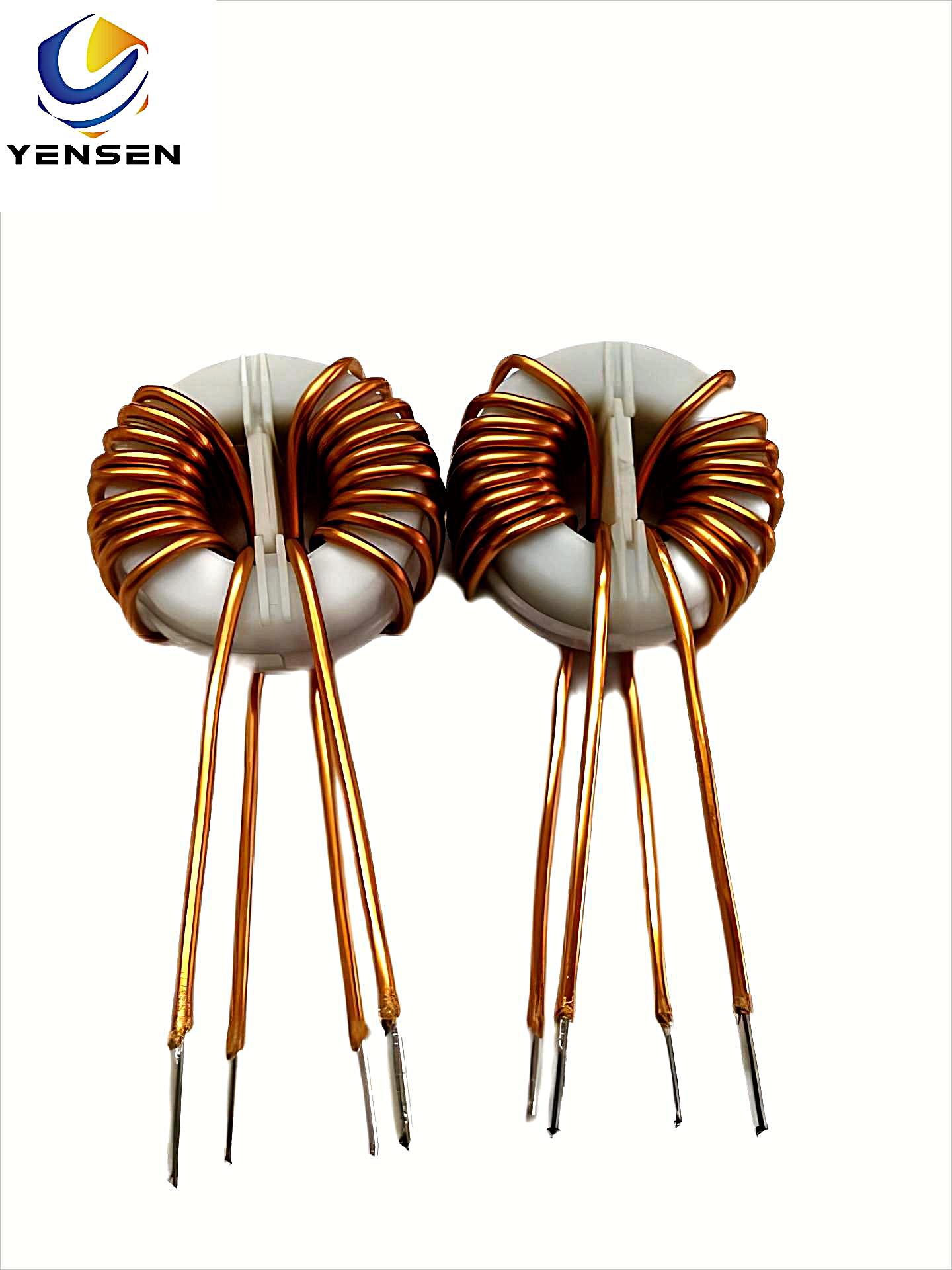

EMC Components Amorphous/Nanocrystalline Toroidal Core Common Mode Choke Inductor
20A
EMC Components Amorphous Toroidal Core Common Mode Choke
Amorphous Common Mode Inductor
Nanocrystalline Cores choke coils
Features:
1. Low Core Loss: Amorphous materials exhibit lower core losses compared to conventional crystalline materials, making them highly efficient for high-frequency applications.
2. High Permeability: These inductors typically have high magnetic permeability, which allows for greater inductance with fewer wire turns.
3. Temperature Stability: Amorphous materials generally maintain their magnetic properties over a wide temperature range, ensuring consistent performance.
4. Compact Design: Their efficient design allows for smaller and lighter inductors without sacrificing performance.
5.Low Noise Operation: Amorphous inductors are effective at suppressing electromagnetic interference (EMI) and maintaining signal integrity.
Specifications:
1. Inductance Range: Typically ranges from microhenries (µH) to several millihenries (mH), depending on the application and design.
2. Rated Current: Inductors are available in various current ratings, usually defined by continuous and surge current capacities.
3. DC Resistance (DCR): Designed to have low DC resistance, minimizing power loss during operation.
4. Operating Frequency: Suitable for high-frequency applications, often in the range of kilohertz (kHz) to megahertz (MHz).
5.Temperature Range: Can operate in a wide environmental temperature range, often from -40°C to +125°C.
Applications:
1. Power Electronics: Used in power supply circuits to filter EMI and stabilize voltage levels.
2. Telecommunication Equipment: Found in communication devices to suppress noise in signal lines and improve transmission quality.
3. Consumer Electronics: Integrated into various devices, including computers, audio equipment, and home appliances to enhance noise performance.
4. Renewable Energy Systems: Applicable in inverters and converters within solar and wind energy systems to help manage voltage and suppress noise.
5. Industrial Automation: Used in control systems and robotics to ensure the reliability of electronic and electrical signals.
| Model |
Inductance (MH) |
Rated Current (A) | Dimension (mm)±2 | |||||
| A | B | C | D | Work Frequency | ||||
| YST8*4*3 | 0.2mH-1mH | 0.1-2.5A | 12 | 7 | 14 | 5 | 10-100KHZ | |
| YST9*5*3 | 0.8-3mH | 0.1-2.5A | 13 | 7 | 15 | 5 | 10-100KHZ | |
| YST12*6*5 | 0.8-3.1mH | 0.1-2.5A | 14 | 9 | 16 | 6 | 10-100KHZ | |
| YST14*9*5 | 1.5mH-4mH | 0.1-3A | 18 | 10 | 20 | 8 | 10-100KHZ | |
| YST16*9*5 | 1.5mH-4.5mH | 0.1-3A | 20 | 10 | 22 | 8 | 10-100KHZ | |
| YST18*10*8 | 1.8mH-5mH | 1-5A | 23 | 13 | 25 | 8 | 10-100KHZ | |
| YST20*10*10 | 2.5mH-6mH | 1-5A | 24 | 15 | 26 | 12 | 10-100KHZ | |
| YST22*14*8 | 3mH-10mH | 1-5A | 26 | 13 | 28 | 12 | 10-100KHZ | |
| YST25*15*10 | 3.5mH-12mH | 3-15A | 30 | 18 | 32 | 13 | 10-100KHZ | |
| YST25*15*13 | 5mH-20mH | 5-25A | 30 | 18 | 32 | 15 | 10-100KHZ | |
| YST31*19*13 | 5mH-25mH | 5-40A | 36 | 18 | 38 | 16 | 10-100KHZ | |
| YST38*19*13 | 3mH-25mH | 5-40A | 44 | 18 | 46 | 16 | 10-100KHZ | |
| YST48*30*15 | 10mH-30mH | 15-65A | 54 | 20 | 56 | 18 | 10-100KHZ | |
| YST50*30*20 | 10mH-50mH | 20-100A | 60 | 65 | 35 | 20 | 10-100KHZ | |
| YST85*50*30 | 15mH-70mH | 30-500A | 100 | 150 | 120 | 30 | 10-100KHZ | |
