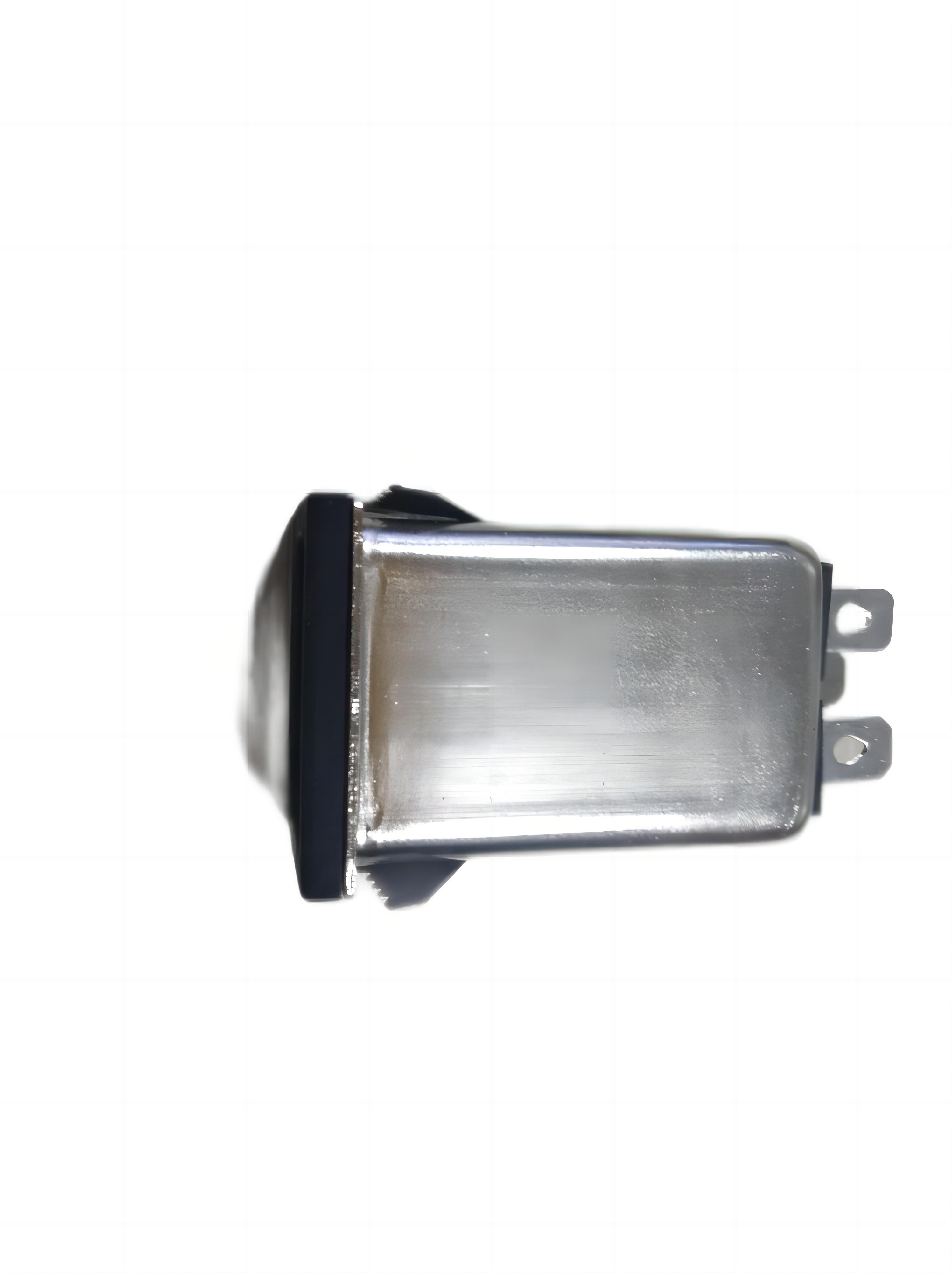

250V AC EMI Noise Filter IEC 320 Socket Plug In Filter For Power Equipment
1-10A
Features
IEC Connector Integrative Filter
General purpose,compact,easy for installation and use
Exceptional conducted attenuation performance,High performance to cost make
Application
Available for mini to middle size electronic equipments and measuring instruments
Computer,Communication equipment, LCD TV,Electronic toys
Medical equipment and medical typical applications
Technical Data
Rated Voltage:125/250VAC
Operation Frequency:50/60Hz
Rated Current:1-10A
Hi-pot Test :1450VDC，2 sec（Line to Line）
Hi-pot Test:2250VDC 2sec（Line to Ground）
Climate Category
25/85/21(-25℃ to+85℃)
Electrical Schematic
Type Selection Table
Model |
(A) RatedCurrent |
(≤mA) Leakage Current |
Output Connection |
||||
| Circuit Diagram | Dim.Fig | ||||||
| YST100-1A-01 | 1 | 0.5 | Fig | 1 | A | Standard | L |
| YST100-3A-01 | 3 | 0.5 | Fig | 1 | A | Standard | L |
| YST100-6A-01 | 6 | 0.5 | Fig | 1 | A | Standard | L |
| YST100-10A-01 | 10 | 0.5 | Fig | 1 | A | Standard | L |
| YST100-1A-01M | 1 | 0.01 | Fig | 2 | A | Standard | L |
| YST100-3A-01M | 3 | 0.01 | Fig | 2 | A | Standard | L |
| YST100-6A-01M | 6 | 0.01 | Fig | 2 | A | Standard | L |
| YST100-10A-01M | 10 | 0.01 | Fig | 2 | A | Standard | L |
| YST100-1A-01K | 1 | 0.5 | Fig | 1 | A-K | Standard | L |
| YST100-3A-01K | 3 | 0.5 | Fig | 1 | A-K | Standard | L |
| YST100-6A-01K | 6 | 0.5 | Fig | 1 | A-K | Standard | L |
| YST100-10A-01K | 10 | 0.5 | Fig | 1 | A-K | Standard | L |
| YST100-1A-01KM | 1 | 0.01 | Fig | 2 | A-K | Standard | L |
| YST100-3A-01KM | 3 | 0.01 | Fig | 2 | A-K | Standard | L |
| YST100-6A-01KM | 6 | 0.01 | Fig | 2 | A-K | Standard | L |
| YST100-10A-01KM | 10 | 0.01 | Fig | 2 | A-K | Standard | L |
Outline Dimension(mm)
When it comes to powering electronic devices, ensuring a reliable and efficient connection is paramount. The IEC inlet EMC filter is designed specifically for this purpose, offering a seamless blend of performance and protection.
Why Choose IEC Inlet EMC Filters?
1. Superior Electromagnetic Interference (EMI) Protection
Our IEC inlet EMC filters are engineered to minimize electromagnetic interference, ensuring that your devices operate smoothly without disruption. This is crucial for sensitive electronic equipment that can be adversely affected by noise and fluctuations in power supply.
2. Enhanced Device Longevity
By filtering out unwanted noise and spikes, these filters not only protect your devices but also extend their lifespan. This means fewer replacements and repairs, translating to cost savings for your business.
3. Easy Integration
Designed with user convenience in mind, our EMI filters easily integrate into existing systems. The IEC inlet configuration allows for straightforward installation, making it simple to upgrade your devices without extensive modifications.
Key Characteristics
-Robust Design: Built to withstand demanding environments, ensuring reliability in various applications.
- High Efficiency: Maintains energy efficiency while providing superior filtering capabilities, helping to reduce overall energy consumption.
- Versatile Applications: Suitable for a wide range of electronic devices, from industrial machinery to consumer electronics.
Imagine the peace of mind that comes with knowing your electronic devices are protected from interference and damage. With our IEC inlet EMC filters, you can focus on what matters most—growing your business and serving your customers.
Don’t let electromagnetic interference disrupt your operations. Contact us today to learn more about our IEC inlet EMC filters and discover how they can enhance the performance of your electronic devices.
