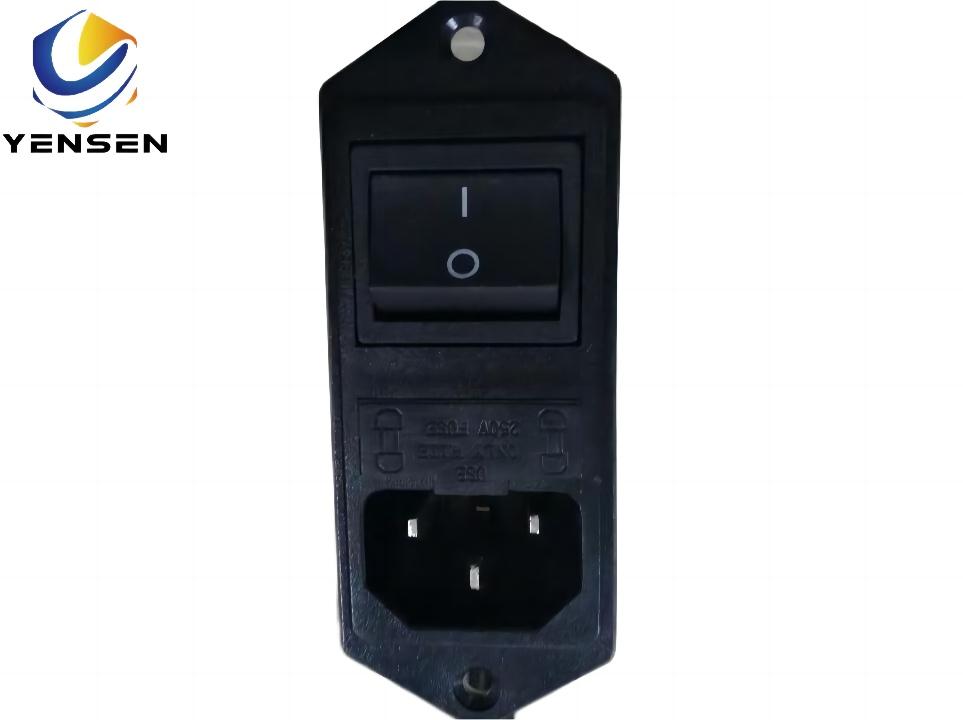

AC Emi Power socket Filter With Fuse Single Phase Emi Filter
Feature:
IEC Connector Integrative Filter with 1 Fuse and Switch
General purpose,compact,easy for installation and use
Practical solution to help your facility pass EMI system approval in a short time
Application
Available for portable electronic equipments and measuring instruments
Apply to consumer goods, single phase power supplies,switch-mode power supplies
Medical equipment and medical typical applications,low leakage current
Technical Data
Rated Voltage:125/250VAC
Operation Frequency:50/60Hz
Rated Current:1-10A
Hi-pot Test :1450VDC，2 sec（Line to Line）
Hi-pot Test:2250VDC 2sec（Line to Ground）
Climate Category
25/85/21(-25℃ to+85℃)
Electrical Schematic
Type Selection Table
| (A) | (≤mA | Output Connection |
||||
| Mode | RatedCurrent | Leakage Current | Circuit Diagram | Dim.Fig. | Fuse Qty | |
| YST102-1A-03D | 1 | 0.5 | Fig 1 | C4 | 2 | Standard |
| YST102-3A-03D | 3 | 0.5 | Fig 1 | C4 | 2 | Standard |
| YST102-6A-03D | 6 | 0.5 | Fig 1 | C4 | 2 | Standard |
| YST102-10A-03D | 10 | 0.5 | Fig 1 | C4 | 2 | Standard |
| YST102-1A-03DM | 1 | 0.01 | Fig 2 | C4 | 2 | Standard |
| YST102-3A-03DM | 3 | 0.01 | Fig 2 | C4 | 2 | Standard |
| YST102-6A-03DM | 6 | 0.01 | Fig 2 | C4 | 2 | Standard |
| YST102-10A-03DM | 10 | 0.01 | Fig 2 | C4 | 2 | Standard |
Outline Dimension(mm)
Insertion Loss In dB
In the world of switch-mode power supplies and measuring instruments, the demand for reliable performance and minimal interference is paramount. Introducing our IEC Inlet EMI Filter, designed specifically to address the challenges posed by electromagnetic interference (EMI). This essential component not only enhances the operational efficiency of your devices but also ensures compliance with international standards, making it a must-have for any serious manufacturer.
The Importance of EMI Filters
EMI filters play a critical role in protecting sensitive electronic equipment from the disruptive effects of electromagnetic interference. In environments where multiple devices operate simultaneously, the risk of EMI increases significantly. Our IEC Inlet EMI Filter effectively suppresses unwanted noise, ensuring that your power supplies and measuring instruments function optimally without interference. This not only prolongs the lifespan of your equipment but also enhances the reliability of your operations.
Key Features and Advantages
Superior Noise Reduction: Our IEC Inlet EMI Filter is engineered to provide exceptional noise attenuation, filtering out both conducted and radiated interference. This results in cleaner power delivery to your devices, crucial for maintaining their performance.
Robust Design: Built to withstand harsh industrial environments, our filters are designed with durability in mind. They can handle high temperatures and are resistant to vibrations, ensuring long-lasting performance.
Compliance Assurance: With our EMI filters, you can rest easy knowing that your devices meet essential regulatory standards such as CISPR 11 and EN61000-6-3. This compliance not only protects your equipment but also enhances your credibility in the market.
Easy Integration: The IEC Inlet design allows for straightforward installation into your existing systems, minimizing downtime and simplifying the upgrade process.
Establishing an Emotional Connection
In today’s fast-paced industrial landscape, the stakes are high. Equipment failures due to EMI can lead to costly downtimes and lost productivity. By choosing our IEC Inlet EMI Filter, you are not just investing in a product; you are investing in peace of mind. Imagine the confidence that comes from knowing your systems are protected from interference, allowing you to focus on what truly matters—growing your business and serving your customers.
Call to Action
Don’t let EMI disrupt your operations any longer. Transform your switch-mode power supplies and measuring instruments with our IEC Inlet EMI Filter today. Visit our website to learn more about how our solutions can enhance your equipment’s performance and reliability.
In conclusion, our IEC Inlet EMI Filter is more than just a component; it is a vital solution for anyone serious about maintaining the integrity and performance of their electronic systems. Take action now and safeguard your operations against the challenges of electromagnetic interference.
