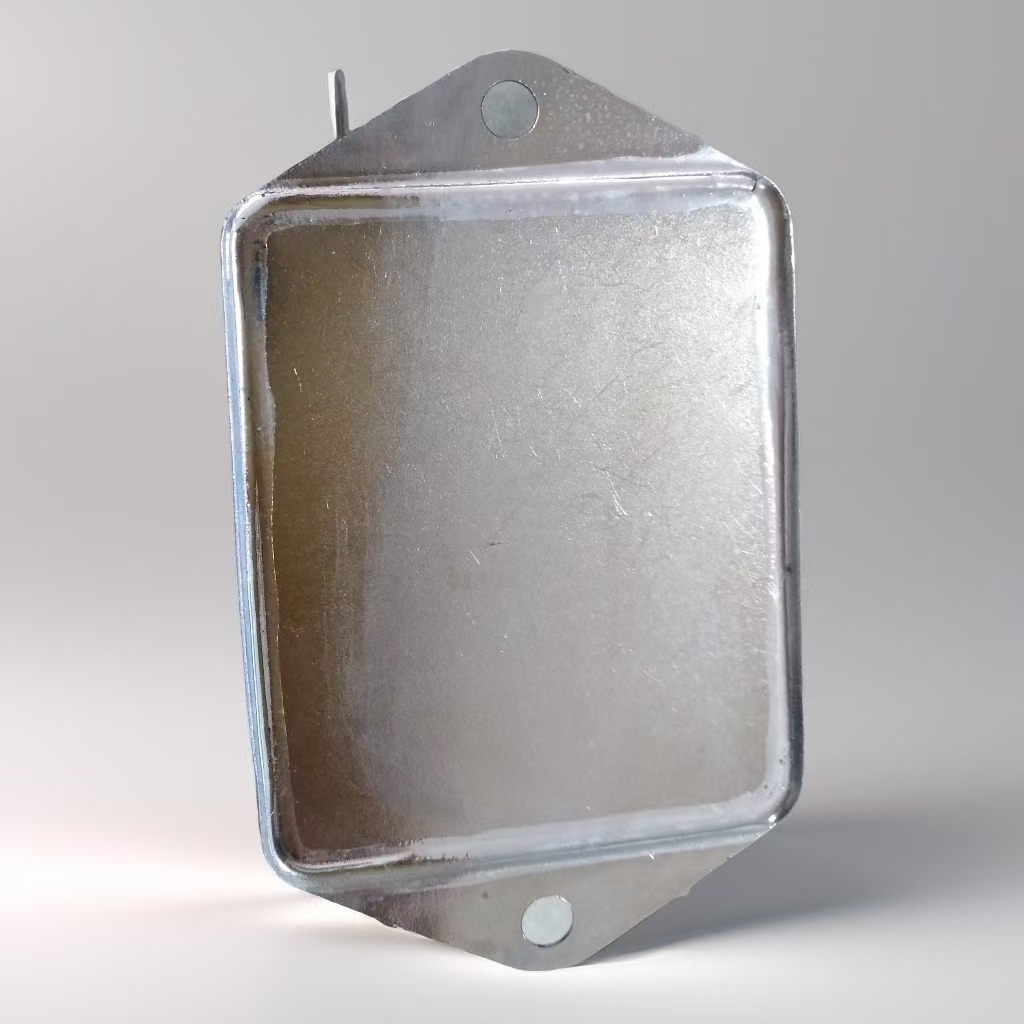

125/250V 10A EMI Chassis Mount Filters Single Phase Filters
1-200A
A single-phase filter, often referred to as a single-phase EMI (Electromagnetic Interference) filter, is designed to suppress unwanted electrical disturbances in power lines. These filters are commonly used to limit the amplitude of interfering voltages on AC power lines, preventing them from propagating into or out of the filtered equipment
Here are a few key points about single-phase filters:
1. Purpose: They are used to control conducted EMI both into the equipment (to prevent malfunction) and out of the equipment (to avoid interference with other devices)
2. Types: There are various types, including single-stage and dual-stage filters, each designed for different levels of performance and applications
3. Applications: These filters are used in a wide range of applications, from general-purpose electronic devices to medical equipment and industrial machinery
Feature:
High performance compact single phase filter with faston/nut/wire terminal
General purpose,compact,easy for installation and use
Application
Available for electronic equipments and measuring instruments
White goods,single phase industrial equipments, power supply systems and controls
Single-phase power supplies, switch-mode power supplies, UPS and automotive equipments
Medical equipment and medical typical applications (Low current leakage)
Technical Data
Rated Voltage:125/250VAC
Operation Frequency:50/60Hz
Rated Current:1-200A
1450VDC 2sec（Line to Line）
Hi-pot Test:2250VDC 2sec（Line to Ground）
Climate Category:25/85/21 (-25℃ to+85℃)
Electrical Shematic
Type Selection Table
| Model |
(A Rated Current |
(≤mA) Leakage Current |
Circuit Diagram |
Dim.Fig |
Output C | Connection | |||
| YST201-1A-01 | 1 | 0.5 | Fig | 1 | B2 | B2-L | |||
| YST201-3A-01 | 3 | 0.5 | Fig | 1 | B2 | B2-L | |||
| YST201-6A-01 | 6 | 0.5 | Fig | 1 | B2 | B2-L | |||
| YST201-10A-01 | 10 | 0.5 | Fig | 1 | D | B2-L | D-S | ||
| YST201-15A-01 | 15 | 0.5 | Fig | 1 | D | D-S | |||
| YST201-20A-01 | 20 | 0.5 | Fig | 1 | E | E-S | |||
| YST201-25A-01 | 25 | 0.5 | Fig | 1 | E2-S | ||||
| YST201-30A-01 | 30 | 0.5 | Fig | 1 | H2 | ||||
| YST201-40A-01 | 40 | 0.5 | Fig | 1 | H2 | ||||
| YST201-50A-01 | 50 | 0.5 | Fig | 1 | H2 | ||||
| YST201-60A-01 | 60 | 0.5 | Fig | 1 | H2 | ||||
| YST201-75A-01 | 75 | 0.5 | Fig | 1 | N5 | ||||
| YST201-100A-01 | 100 | 0.5 | Fig | 1 | N5 | ||||
| YST201-120A-01 | 120 | 0.5 | Fig | 1 | N5 | ||||
| YST201-150A-01 | 150 | 0.5 | Fig | 1 | N10 | ||||
| YST201-200A-01 | 200 | 0.5 | Fig | 1 | N10 | ||||
| YST201-1A-01M | 1 | 0.01 | Fig | 2 | B2 | B2-L | |||
| YST201-3A-01M | 3 | 0.01 | Fig | 2 | B2 | B2-L | |||
| YST201-6A-01M | 6 | 0.01 | Fig | 2 | B2 | B2-L | |||
| YST201-10A-01M | 10 | 0.01 | Fig | 2 | D | B2-L | D-S | ||
| YST201-15A-01M | 15 | 0.01 | Fig | 2 | D | D-S | |||
| YST201-20A-01M | 20 | 0.01 | Fig | 2 | E | E-S | |||
| YST201-25A-01M | 25 | 0.01 | Fig | 1 | E2-S | ||||
| YST201-30A-01M | 30 | 0.01 | Fig | 2 | H2 | ||||
| Remark:Model namefollow by:Blank represents Faston connection,L represents Wire connection,S represents Screw connection | |||||||||
Outline Dimension
