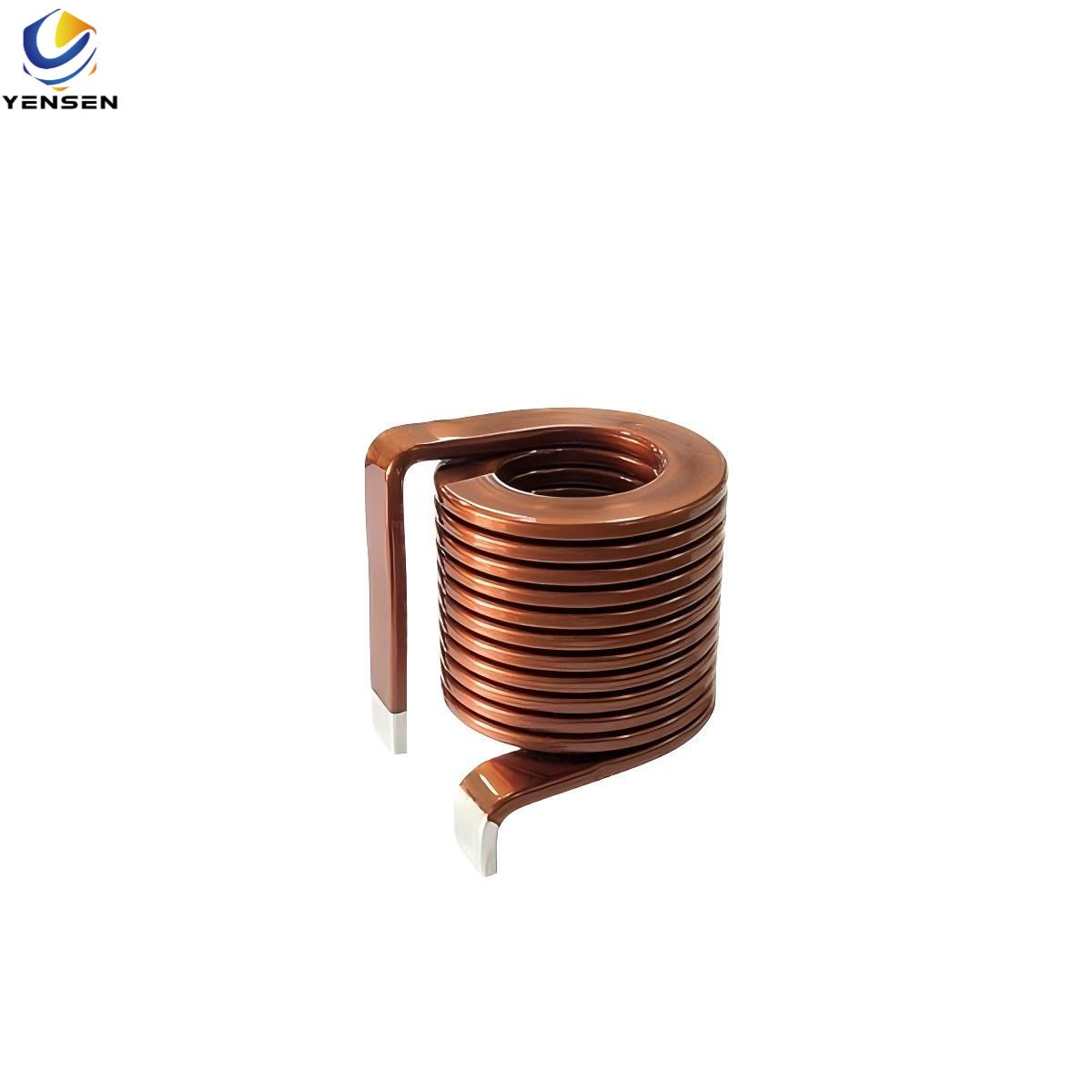

Copper Winding coils Cu Edgewise Flat Coils for large current of transformer

 This type of design is suitable for the large current of transformer and choke coil for photovoltaic inverter, Power generation, Electrical car charging system or other high current application.

Material	200℃~220℃ Class Fat Enameled Copper /Aluminum Wire/Use 200~220 class wire to makethe coil temperature re
	Bare Copper/Bare Aluminum Wire,etc.                     sistance better
Wire thickness (mm)	0.05~6.0			/
Wire   width(mm)	0.6~20.0	The maximum width to thickness ratio that can be wou
			nd is 30 times
Cross-sectional area	0.1~60mm²			/
(mm²)
Winding   Method	Vertical  Winding,Fat  Winding,Bifilar  Winding			/
Winding  Direction	Clockwise Winding,Counterclockwise Winding			/
Shape	Round/Rectangle/Racetrack/Triangle/Trapezoid			/
Processing	Winding/Bending/Paint   removal/Soldering/Perforatin	The diameter of the inner hole should be more than 1.5
	g/Riveting/Welding/Tapping	timesthe  wire  width
Height of coil	≤95mm(0.75~200 Turns)	Height of Coil Calculation:
		Height=Wire thickness*Gas Coef*Turns

Experience the Power of Innovation with Cu Edgewise Flat Coils

Unlock the potential of your projects with our Cu Edgewise Flat Coils, expertly designed for efficiency and performance in power electronics and motor applications. These cutting-edge coils are revolutionizing the way we think about winding technology, making them an essential choice for engineers and manufacturers looking to optimize their designs.

Key Features

Superior Material: Made from high-quality copper, our edgewise flat coils ensure excellent conductivity and durability. Copper is known for its superior electrical properties, making these coils ideal for applications where performance is critical.

Precision Engineering: Each coil is meticulously crafted with a tolerance of just 0.01mm to 0.1mm, ensuring that every piece meets the highest standards of quality and consistency. This precision is vital for applications in power electronics, where even the smallest variations can impact performance.

Innovative Design: Utilizing a unique edgewise winding technique, these coils feature a rectangular wire profile wound on its edge. This design not only maximizes space efficiency but also enhances thermal properties and minimizes electrical losses—key factors in high-performance applications.

Versatile Applications: Our Cu Edgewise Flat Coils are perfect for a variety of uses, including:
  Power Electronics: Ideal for transformers, inductors, and other components where efficiency is paramount.
  Motors: Enhance the performance of electric motors with coils that provide superior heat dissipation and reduced losses.
  Custom Solutions: Available in various shapes and sizes to meet specific project requirements, ensuring you get exactly what you need.

Why Choose Cu Edgewise Flat Coils?

1. Enhanced Performance: The edgewise winding technique allows for better packing density, resulting in coils that not only save space but also perform better under load.
