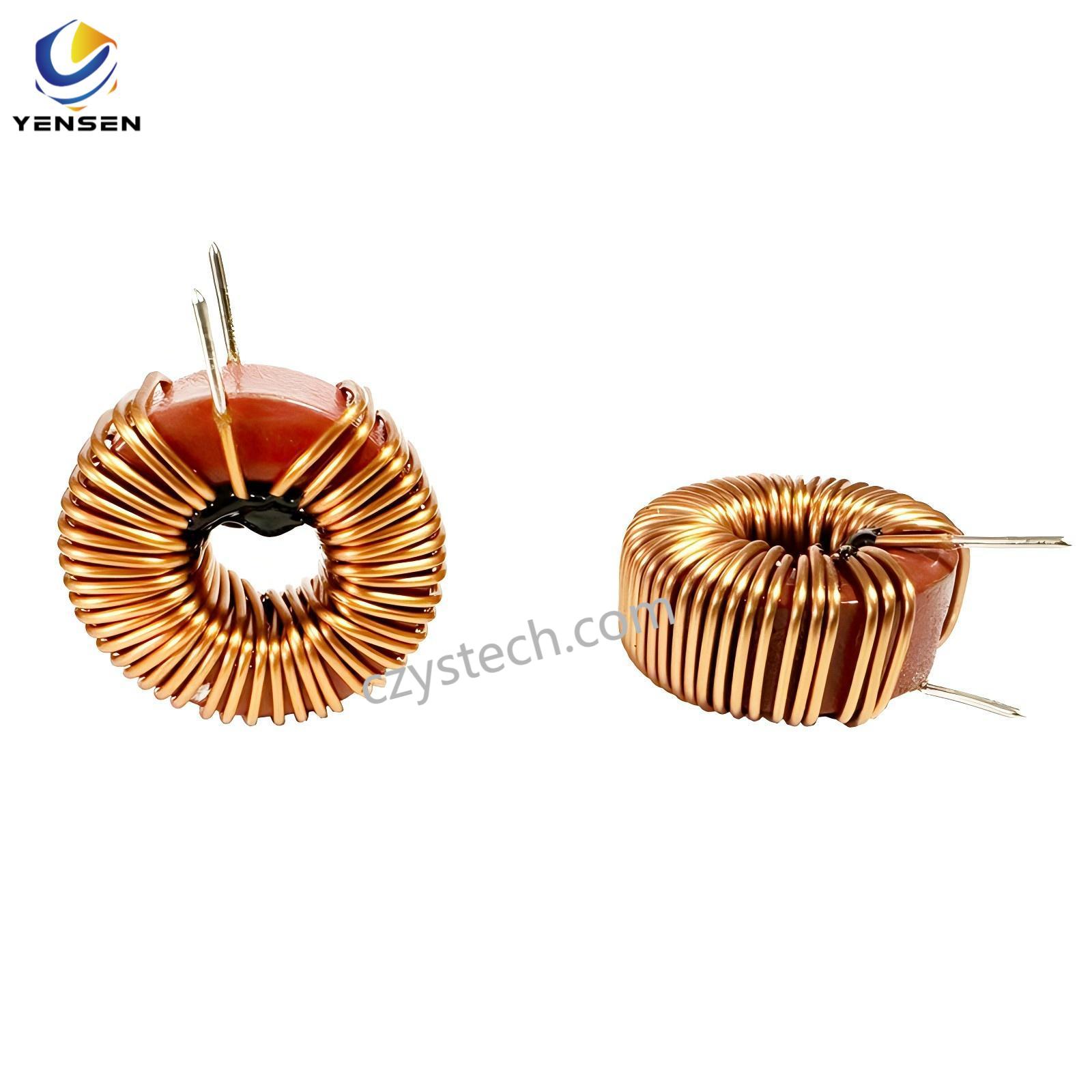

27uH Vertical Power Magnetic Ring Inductor differential mode inductor Choke Coil Inductor
Short Description:
Toroidal inductors
Useful in a wide variety of power conversion and line filter applications.
Wound on iron powder material toroids.
COST-EFFECTIVE design.
Product Description: Premium Choke Coil Inductor
Unleash the Power of Precision with Our Choke Coil Inductor
Are you ready to elevate your electronic projects to the next level? Meet our Premium Choke Coil Inductor, a game-changer in the world of inductive components. Designed for enthusiasts and professionals alike, this choke coil inductor is your go-to solution for effective noise suppression and energy storage in various applications.
Key Features
Superior Material Composition: Crafted from high-grade ferrite material, our choke coil inductor ensures minimal core losses and exceptional performance. This means better efficiency and longer-lasting durability, allowing you to focus on what truly matters—your project.
Innovative Design: Featuring a unique winding technique that enhances magnetic coupling, our choke coil inductor provides superior inductance stability under varying temperatures and frequencies. This innovation not only improves performance but also extends the lifespan of your devices.
Benefits of Using Our Choke Coil Inductor
Noise Reduction: Say goodbye to unwanted electromagnetic interference (EMI) and radio frequency interference (RFI). Our choke coil inductor effectively filters out noise, ensuring clean power delivery for your sensitive electronic components.
Enhanced Performance: Whether you’re designing a high-efficiency power supply or a high-fidelity audio system, our choke coil inductor delivers consistent performance, allowing you to achieve your desired results without compromise.
Easy Integration: With its standard pin configuration, installation is a breeze. Perfect for hobbyists and seasoned engineers alike, you can quickly incorporate this inductor into your existing designs without any hassle.
Applications
Our Premium Choke Coil Inductor is versatile enough for a wide range of applications, including:
Switching Power Supplies: Improve efficiency and reduce ripple voltage.
Audio Equipment: Enhance sound quality by minimizing noise interference.
LED Drivers: Ensure stable current flow for optimal brightness.
RF Applications: Filter out unwanted signals for clearer transmission.
Why Choose Us?
When it comes to electronic components, quality matters. Our choke coil inductor stands out not just for its performance but also for its reliability. Backed by rigorous testing and customer satisfaction guarantees, we ensure that every product meets the highest standards of excellence.
Choke Coil Common Mode toroidal Inductor For Switching Power Supplies
Low volume hand wound to high volume automatic machine wound. 130℃ or 155℃ UEW-NY wire. high saturation current.
coated with varnish.
Useful in a wide variety of power conversion and line filter applications.
Wound on iron powder material toroids.
1.Tolerance(J:5%, K:10%, L:15%, M:20%)
2.Customer’s Specifications are welcome.
|
|
||||||
|
Type
|
Inductance |
Dimension (mm) |
||||
|
A |
B |
C |
D |
Work Frequency |
||
|
T8*4*3 |
0.2mH-1mH |
12 |
7 |
14 |
5 |
10-100KHZ |
|
T9*5*3 |
0.8-3mH |
13 |
7 |
15 |
5 |
10-100KHZ |
|
T12*6*5 |
0.8-3.1mH |
14 |
9 |
16 |
6 |
10-100KHZ |
|
T14*9*5 |
1.5mH-4mH |
18 |
10 |
20 |
8 |
10-100KHZ |
|
T16*9*5 |
1.5mH-4.5mH |
20 |
10 |
22 |
8 |
10-100KHZ |
|
T18*10*8 |
1.8mH-5mH |
23 |
13 |
25 |
8 |
10-100KHZ |
|
T20*10*10 |
2.5mH-6mH |
24 |
15 |
26 |
12 |
10-100KHZ |
|
T22*14*8 |
3mH-10mH |
26 |
13 |
28 |
12 |
10-100KHZ |
|
T25*15*10 |
3.5mH-12mH |
30 |
18 |
32 |
13 |
10-100KHZ |
|
T25*15*13 |
5mH-20mH |
30 |
18 |
32 |
15 |
10-100KHZ |
|
T31*19*13 |
5mH-25mH |
36 |
18 |
38 |
16 |
10-100KHZ |
|
T38*19*13 |
3mH-25mH |
44 |
18 |
46 |
16 |
10-100KHZ |
|
T48*30*15 |
10mH-30mH |
54 |
20 |
56 |
18 |
10-100KHZ |
