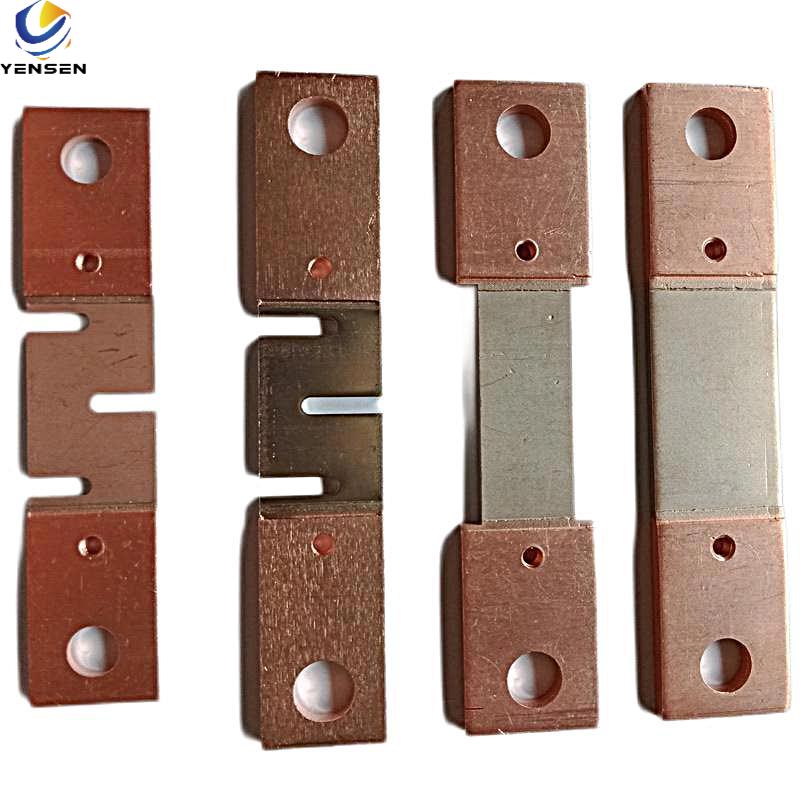

Customzied E-Beam Welding 100A 75mV Manganese Current Power Shunt

Customized E-Beam Welding Manganese current power shunts are specialized components used in various electrical applications, particularly in smart energy meters. Here’s an overview of their features and specifications based on the available information:

Features

• Material: Typically made from Manganin or Manganese-Copper alloys, which provide high accuracy and stability under varying conditions
• Current Ratings: Available for a wide range of current ratings, from 1A to 10,000A, accommodating different application needs
• Voltage Drop Options: Standard voltage drops are often around 75mV, with options for customization at 60mV, 100mV, or 200mV
• Accuracy Level: High accuracy is a hallmark, with levels around 0.5%, ensuring reliable performance
• Temperature Range: Designed to operate effectively across a wide temperature range, typically from -45℃ to +170℃, enhancing their versatility in various environments

  Applications

  • Electrical Measurement Systems: Shunts are widely utilized in ammeters to enable the measurement of high currents that exceed the range of standard meters. They allow for accurate readings without disrupting the circuit
  • Battery Monitoring: In battery systems, shunts are often placed on the negative terminal to monitor current flow accurately. This setup helps in calculating battery charge, remaining energy, and consumption in real-time
  • Power Distribution: Shunts are used in power distribution systems to manage and measure electrical flow effectively. They can protect circuits from overcurrent situations by providing a safe path for excess current
  • Size
  •

  • Productsize:unit mm
    model		D	A	B	F	M	C(Test screwempt)
    100A-75mV	120±2	22±1	100±1	49±1	4±0.2	φ10.5±0.2	M4
    	104±2	22±1	85±1	62±1	2±0.2   3±0.2	Φ8.5±0.2	M4
    				49±1
    200A-75mV	120±2	22±1	100±1	49±1	4±0.2	φ10.5±0.2	M4
    	104±2	22±1	85±1	49±1	3±0.2	Φ8.5±0.2	M4
    250A-75mV	120±2	22±1	100±1	49±1	4±0.2	Φ8.5±0.2	M4
    300A-75mV	120±2	22±1	100±1	49±1	4±0.2	Φ8.5±0.2	M4
    	120±2	26±1	100±1	55±1	4±0.2	Φ10±0.2	M4
    400A-75mV	120±2	29±1	100±1	49±1	4±0.2	Φ10.5±0.2	M4
    500A-75mV	120±2	36±1	100±1	49±1	4±0.2	Φ10.5±0.2	M4
    600A-75mV	120±2	44±1	100±1	49±1	4±0.2	Φ8.5±0.2	M4

Technical Parameters
