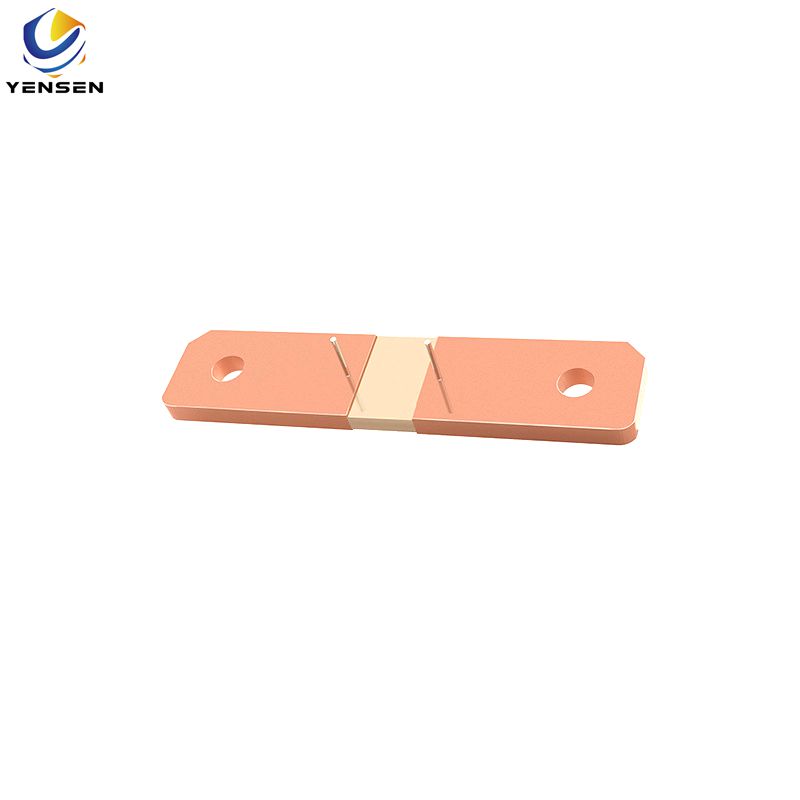

75mv Eb Welded Metal Strip High Power Manganin Resistor Shunt for Ammeter Current Measurement
A current shunt, also known as a current sense resistor or current-sensing resistor, is a type of resistor specifically designed to measure or monitor the current flowing through a circuit. It is typically a low resistance value resistor connected in series with the load or the circuit being monitored.
Product features:
1. High precision, high reliability, high overload capacity and high stability
2. High reliability, high overload capacity and high product accuracy.
3. Wide temperature range non-inductive design
4. Resistance temperature coefficient TCR × 10-6/ºC≤50ppm
5. Products meet ROHS requirements
6. Passed AEC-Q200 certification
The shunt is designed for precision current measurement in instruments, industrial, and automotive applications, typically including energy meters, ampere meters, power inverters, and battery current monitoring.
Electrical performance:
Electrical performance:
| Rated Current | 100A~600A |
| AccuracyClass | 0.2%,0.5%,1%,2%,5% |
| 20 ºC~60 ºC resistance temperature coefficient T.C.R ( ppm / ºC ) | ≤50 |
| Manganese copper material | GB 6J12 precision manganese copper |
| Copper material | GB T2 Y2 |
| Operating Temperature Range | -55ºC~+170ºC |
-
Productsize:unit mm model D A B F M C(Test screwempt) 100A-75mV 120±2 22±1 100±1 49±1 4±0.2 φ10.5±0.2 M4 104±2 22±1 85±1 62±1 2±0.2
3±0.2Φ8.5±0.2 M4 49±1 200A-75mV 120±2 22±1 100±1 49±1 4±0.2 φ10.5±0.2 M4 104±2 22±1 85±1 49±1 3±0.2 Φ8.5±0.2 M4 250A-75mV 120±2 22±1 100±1 49±1 4±0.2 Φ8.5±0.2 M4 300A-75mV 120±2 22±1 100±1 49±1 4±0.2 Φ8.5±0.2 M4 120±2 26±1 100±1 55±1 4±0.2 Φ10±0.2 M4 400A-75mV 120±2 29±1 100±1 49±1 4±0.2 Φ10.5±0.2 M4 500A-75mV 120±2 36±1 100±1 49±1 4±0.2 Φ10.5±0.2 M4 600A-75mV 120±2 44±1 100±1 49±1 4±0.2 Φ8.5±0.2 M4
