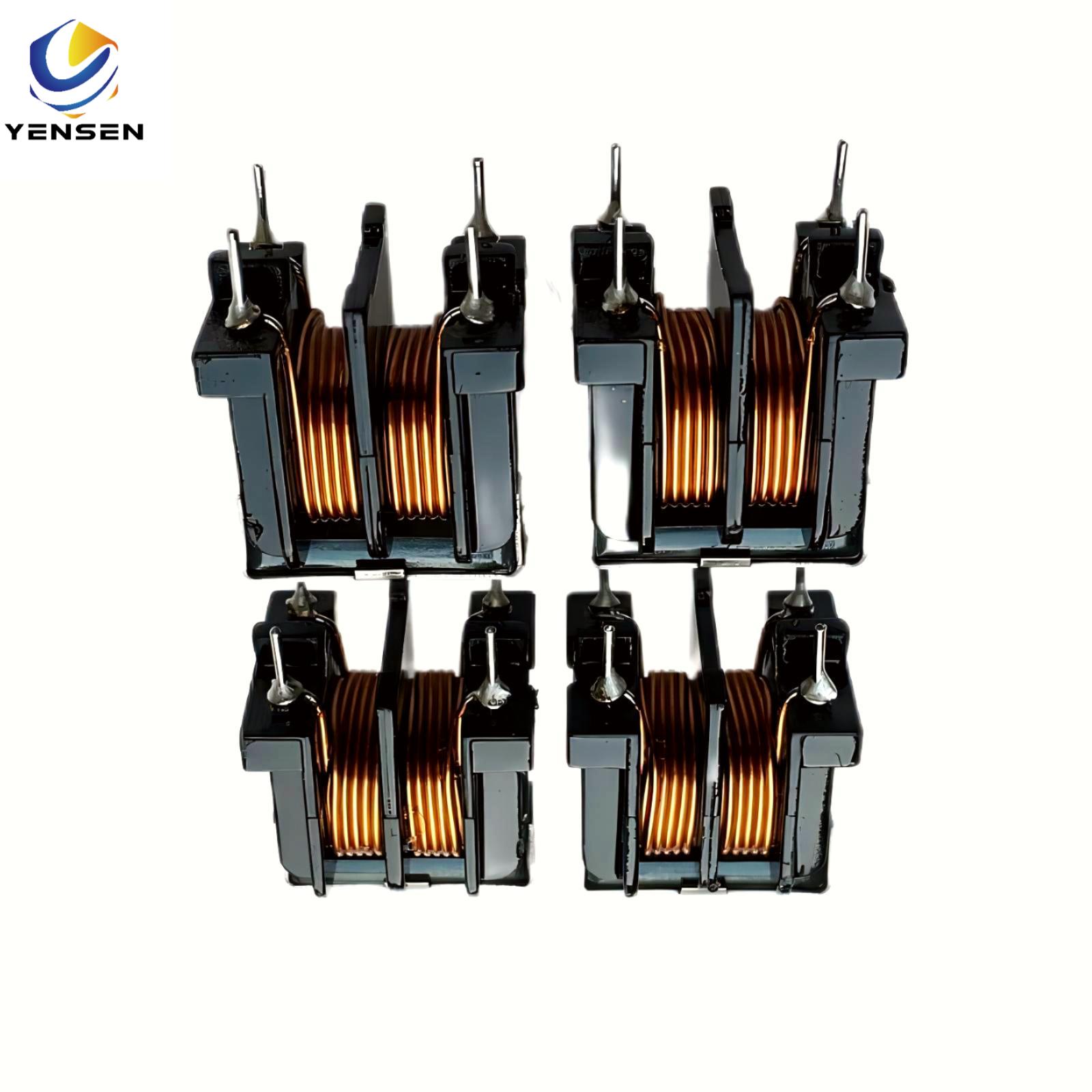

Horizontal /Vertical Uu CMC Common Mode Chokes Line Filter Inductor for EMI Suppresion
UU10.5/UU16
分享
Product Description
Product Description
The Horizontal/Vertical Uu CMC Common Mode Chokes Line Filter Inductor is designed for effective EMI suppression in various electronic applications. These inductors utilize a unique construction to filter out common-mode noise while allowing differential signals to pass through, ensuring clean and stable power delivery.
Product Description
Features:
-Compact size, high inductance
-Excellent frequency characteristics
-Low magnetic flux leakage
-Design as Customer's Requested Specifications
Application:
-For Line filters of switching power supplies
-Eliminates incoming leaking noise from TVs, VCRs and audio equipment
-For OA equipment, communications equipment and other electronic devices
| Model No. | High-frequency transformer UU10.5 | |
| Working Frequency Range | 1KHz-1MHz | |
| Output Power | 1W-3000W | |
| Output Voltage | 0.5V-15000V | |
| Output Current | 0.01A-100A | |
| Storage Temperature | +5ºC to +95ºC | |
| Working Temperature | -40ºC to +125ºC | |
| Storage Humidity | 30% to 70% | |
| Designing Information | operating frequency | |
| circuit topology | ||
| input voltage range | ||
| output power (V/A) | ||
| mounting dimensions | ||
| safety requirements | ||
| product application |
 |
|||||
| Part Number | Inductance (mH) | Rated Current (A) |
Resistance Per winding (Ω)Max |
Inductance Differential Min |
Resonant Frequency (KHZ) Min |
| UU10.5-102 | 1 | 1.9 | 0.1 | 14 | 1000 |
| UU10.5-222 | 2.2 | 1.3 | 0.23 | 32 | 740 |
| UU10.5-472 | 4.7 | 0.9 | 0.43 | 65 | 480 |
| UU10.5-103 | 10 | 0.6 | 1 | 140 | 320 |
| UU10.5-183 | 18 | 0.45 | 1.7 | 240 | 220 |
| UU10.5-333 | 33 | 0.35 | 3 | 400 | 170 |
| UU10.5-513 | 51 | 0.3 | 4 | 530 | 125 |
