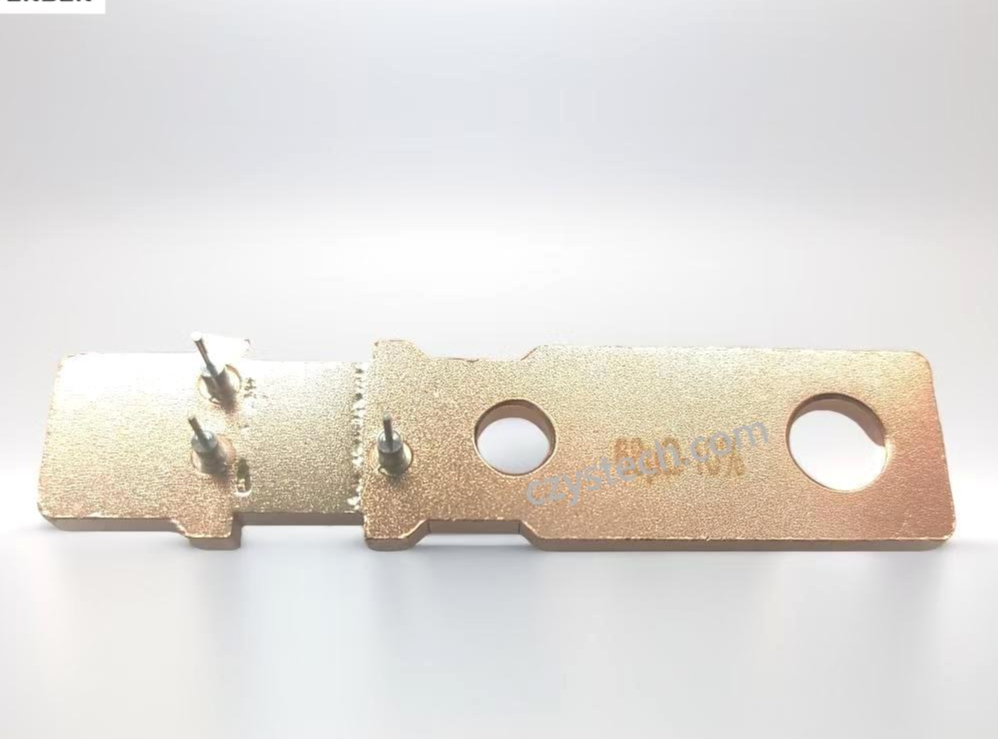

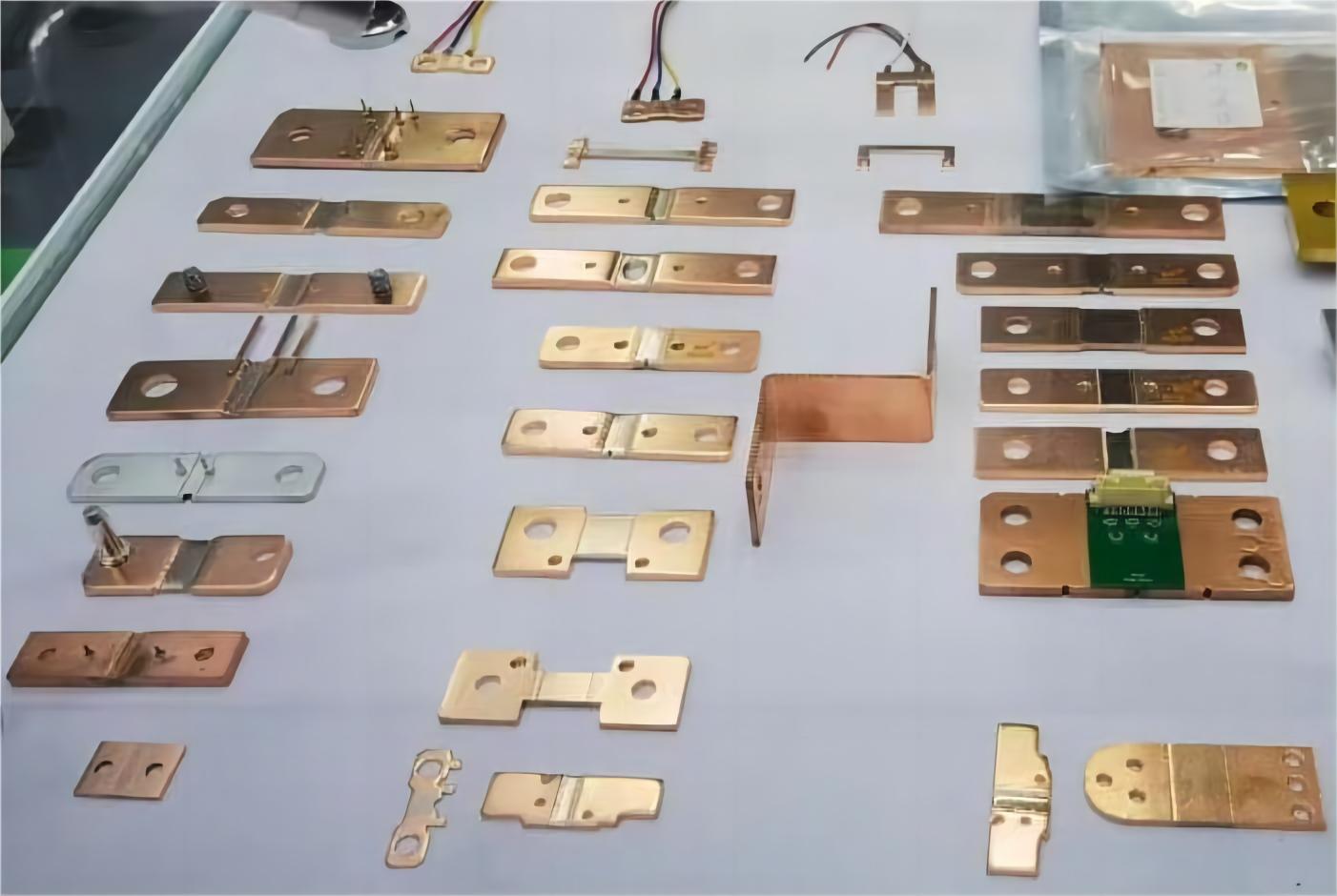

BMS Battery E-Beam Shunt Resistor With Three Pins Rivet

A large current shunt is constructed using a high-quality manganese copper alloy, renowned for its exceptional stability. This shunt is designed through a specialized welding technique that ensures its resistance remains stable even under significant temperature fluctuations.

Features:

  • Temperature Coefficient≤150ppm/℃

  • Comply With EU ROHS Standards

  • Special Specifications Can Be Customized

  • According To Requirements

  • Very Low Inductance <5nH

  • Electron Beam Welding, Stable Performance

  • Sustain High Temperature

  • Tin-Plated

  • The product is highly accurate, reliable, has high overload capacity, high stability, and has a wide operating temperature range.
  • Non-inductive design.
    TCR×10-6/℃≤50ppm
    Complies with ROHS requirements.
    AEC-Q200 certified
    Product application
    Battery management system, current detection of power electronic equipment, inverter, UPS, motor control and electronic load equipment
■  Product Size:FL3-6918-A-100μQ
           L                  D                 A                   B                 F                  M                   C
    69±0.5             18±0.5             52±0.5           18±0.5        3±0.2        φ7.0x2           M4x2

Model L D L1 A F M  C B1   B2
FL3-6918-B-50μQ 69±0.5 18±0.5 52±0.5 7±0.5  3.0±0.5 φ7.0x2 1x1 4±0.1 6±0.15
■ Electrical parameter
Rated Current 300A
AccuracyClass 0.2%、0.5%、1%、2%、5%
20℃~60℃Temperature coefficient of resistance T.C.R(ppm/℃) ≤50
Manganese copper material National standard 6J12 precision manganese copper
Copper material National StandardT2 Y2
Operating Temperature Range -55℃~+170℃

Performance testing

Performance Testing
Project Test conditions Resistance range
Thermal shock -40℃ to +150℃, 1000 cycles, 15 minutes at each extreme ±0.5%R
Short-term overload 2.5 times rated power, lasting 5 seconds ±0.5%R
Low temperature operation -40℃45 seconds ±0.5%R
High temperature exposure at +170℃下1000h ±1%R
Deviation humidity +85℃,85%RH,10%deviation ,1000h ±0.5%R
Mechanical shock 100 ms, 6 ms, 5 pulses ±0.5%R
vibration Frequency changes from 10Hz to 2000Hz in 1 minute, 3 directions, 12 hours ±1%
Load life 1000 hours at +70°C, 1.5 hours "on", 0.5 hours "off" ±0.5%
Moisture-proof MIL-STD-202 ±0.5%

Derating Curve:
