High Current Shielded Type SMD Wire Wound Power Inductors with Magnetic core
Product Description

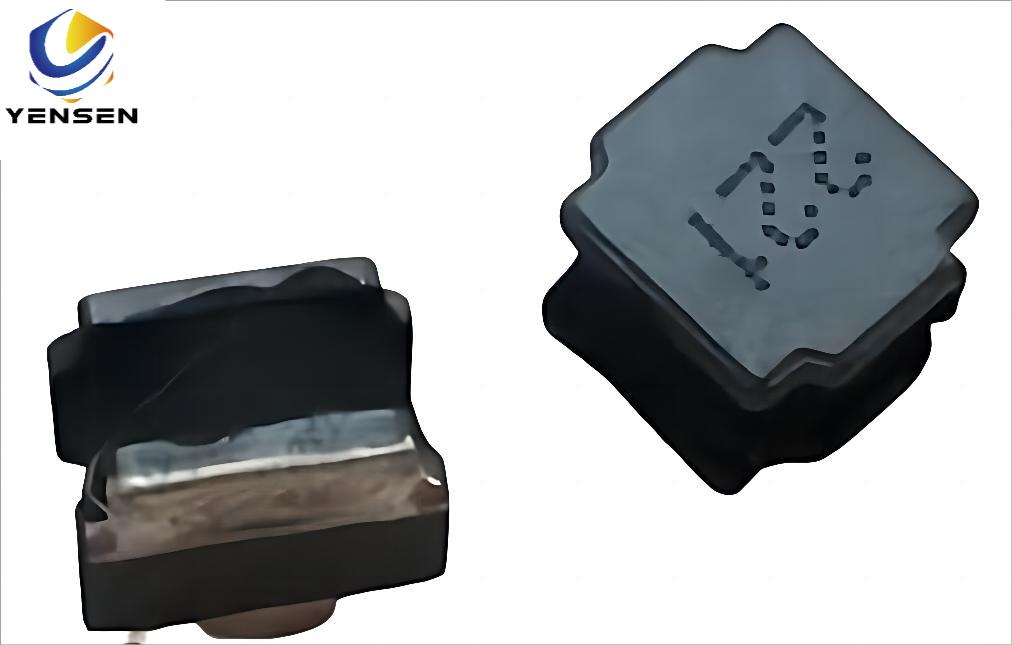

NR5020 Ferrite High Current SMD Shielded Power Inductor for DC-DC Converters
SMD inductors, also known as surface mount power inductors, are electronic components used to store and release energy in electrical circuits. They are designed to handle high currents and have low resistance to minimize power losses.
SMD power components play a vital role in the evolution of electronic device design. Their advantages in size, efficiency, and manufacturing compatibility make them indispensable in today's technology landscape. As the demand for smaller and more efficient devices continues to grow, the importance of SMD technology will only increase
FEATURES
• Shielded construction with magnetic can reduce buzz noise significantly
• Metallization on ferrite core produces excellent shock resistance and durability
• Designed with a closed magnetic circuit can cut down leakage
• Built with flux and Electromagnetic Interference(EMI)
• Use less Printed Circuit Board (PCB) and save more power
Package (CARRIER TAPE DIMENSIONS (mm))
APPLICATION
.Mobile devices with added features such as TV, camera and LED Lighting
• Flat-screen TVs, blue-ray disc recorders, set-top boxes
• Laptops, desktop computers, servers, graphic cards
• Video game consoles and GPSs,
• Automotive systems, Base stations for telecommunication
