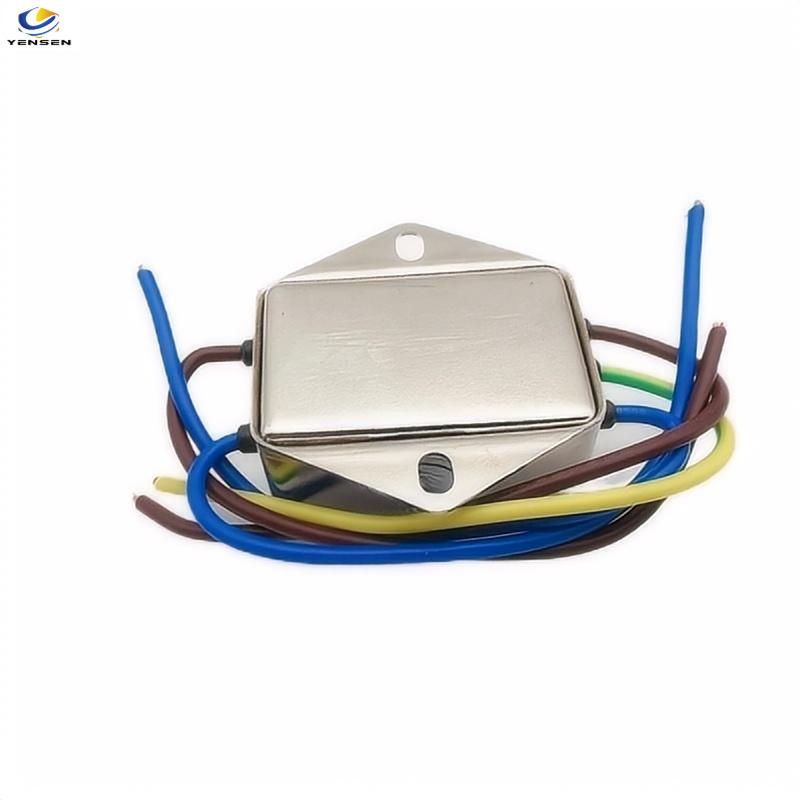

125/250VAC General Purpose Single-Phase Filter with wire connections
Features
General purpose,compact single phase filter with Faston/nut/wire connections
General purpose,compact,easy forinstallation and use,cost saving to performance
General Purpose Single-Phase Filter with Wire Connections, a robust solution designed specifically for power distribution systems and industrial equipment. This filter effectively mitigates electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring the reliable performance of your electrical systems.
Unique Features
- Effective Noise Suppression: The filter employs a combination of capacitors, inductors, and resistors to create a low-pass filter effect, allowing only the desired power frequency to pass while attenuating high-frequency noise. This design is crucial in maintaining the integrity of sensitive equipment.
- Wire Connections: Featuring wire connections for easy integration into existing systems, this filter simplifies installation and enhances flexibility in various applications.
- High Current Rating: Available in multiple current ratings (e.g., 10A and 20A), it caters to a wide range of industrial applications, ensuring that it can handle the demands of your specific setup.
- Durable Construction: Built with a lightweight metal housing, this filter is designed for durability and longevity, making it suitable for demanding environments.
- Wide Operating Temperature Range: With an operational range from -25°C to +100°C, it is adaptable to various environmental conditions, ensuring reliable performance across different settings.
- Safety Compliance: The filter meets stringent safety standards including UL 1283 and EC/EN 60939, providing peace of mind regarding its reliability and safety in operation.
Technical Data
| Rated Voltage | 125/250VAC |
| Operation Frequency | 50/60Hz |
| Rated Current | 1-30A |
| Hi-pot Test |
1450VDC 2sec(Line to Line) 2250VDC2sec(Line to Ground) |
| Climate Category | 25/85/21(-25℃ to +85℃) |
Electrical Schematic
Type Selection Table
| Model | RatedCurrent | Leakage Current | Circuit Diagram | Dim.Fig. |  |
 |
 |
| YST200-1A-01 | 1 | 0.5 | Fig 1 | B2 | B2-L | ||
| YST200-1A-02 | 1 | 0.5 | Fig 1 | B | B-L | ||
| YST200-3A-01 | 3 | 0.5 | Fig 1 | B2 | B2-L | ||
| YST200-3A-02 | 3 | 0.5 | Fig 1 | B | B-L | ||
| YST200-6A-01 | 6 | 0.5 | Fig 1 | B2 | B2-L | ||
| YST200-6A-02 | 6 | 0.5 | Fig 1 | B | B-L | ||
| YST200-10A-01 | 10 | 0.5 | Fig 1 | B2 | B2-L | ||
| YST200-10A-02 | 10 | 0.5 | Fig 1 | B | B-L | ||
| YST200-15A-01 | 15 | 0.5 | Fig 1 | D | D-S | ||
| YST200-20A-01 | 20 | 0.5 | Fig 1 | D | D-S | ||
| YST200-25A-01 | 25 | 0.5 | Fig 1 | E-S | |||
| YST200-30A-01 | 30 | 0.5 | Fig 1 | E2-S | |||
| YST200-1A-01M | 1 | 0.01 | Fig 2 | B2 | B2-L | ||
| YST200-1A-02M | 1 | 0.01 | Fig 2 | B | B-L | ||
| YST200-3A-01M | 3 | 0.01 | Fig 2 | B2 | B2-L | ||
| YST200-3A-02M | 3 | 0.01 | Fig 2 | B | B-L | ||
| YST200-6A-01M | 6 | 0.01 | Fig 2 | B2 | B2-L | ||
| YST200-6A-02M | 6 | 0.01 | Fig 2 | B | B-L | ||
| YST200-10A-01M | 10 | 0.01 | Fig 2 | B2 | B2-L | ||
| YST200-10A-02M | 10 | 0.01 | Fig 2 | B | B-L | ||
| YST200-15A-01M | 15 | 0.01 | Fig 2 | D | D-S | ||
| YST200-20A-01M | 20 | 0.01 | Fig 2 | D | D-S | ||
| YST200-25A-01M | 25 | 0.01 | Fig 2 | E-S | |||
| YST200-30A-01M | 30 | 0.01 | Fig 2 | E2-S | |||
| Remark:Model name follow by:Blank represents Faston connection,L represents Wire connection,S represents Screw connection | |||||||
Outline Dimensions
Insertion Loss IndB
Benefits
- Enhanced Equipment Performance: By reducing EMI/RFI, the filter helps maintain optimal performance of connected devices, minimizing disruptions and potential damage caused by electrical noise.
- Improved Electromagnetic Compatibility (EMC): Ensures compliance with EMC regulations, which is essential for industries where electromagnetic interference can lead to significant operational issues.
- Versatile Applications: Ideal for use in power supplies, industrial machinery, medical devices, telecommunications equipment, and consumer electronics. Its versatility makes it a valuable addition to any electrical system.
- Easy Installation: The quick-connect wire terminals allow for straightforward installation, reducing downtime during setup.
Application
Available forelectronic equipments and measuring instruments
White goods,single phase industrialequipments,power supply systems and controls
Single-phase power supplies,switch-mode power supplies,PLC controller Medical equipment and medical typical applications(Low current leakage)
